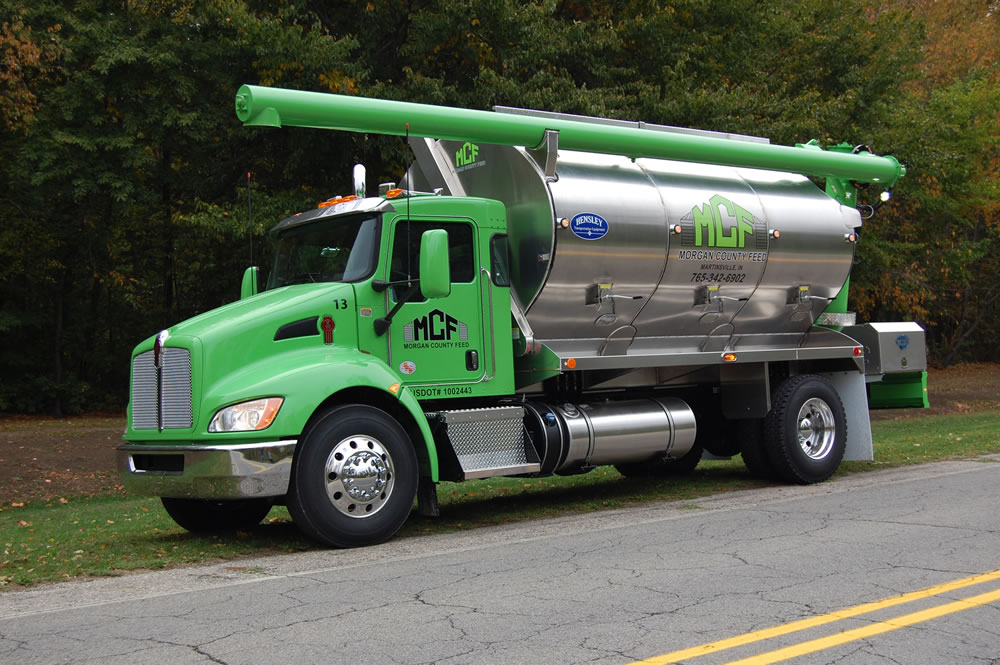

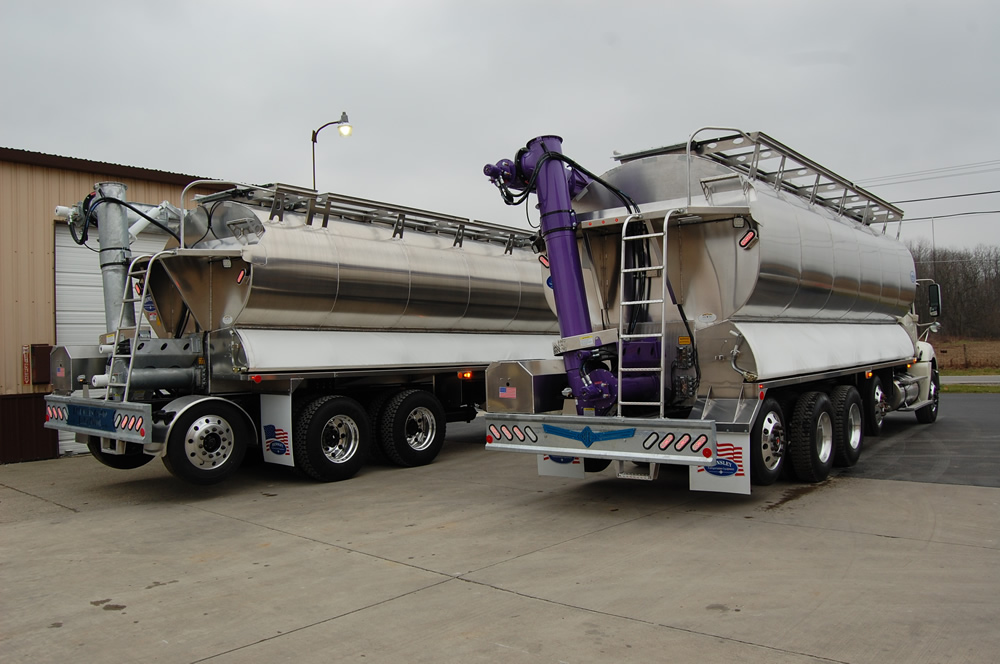

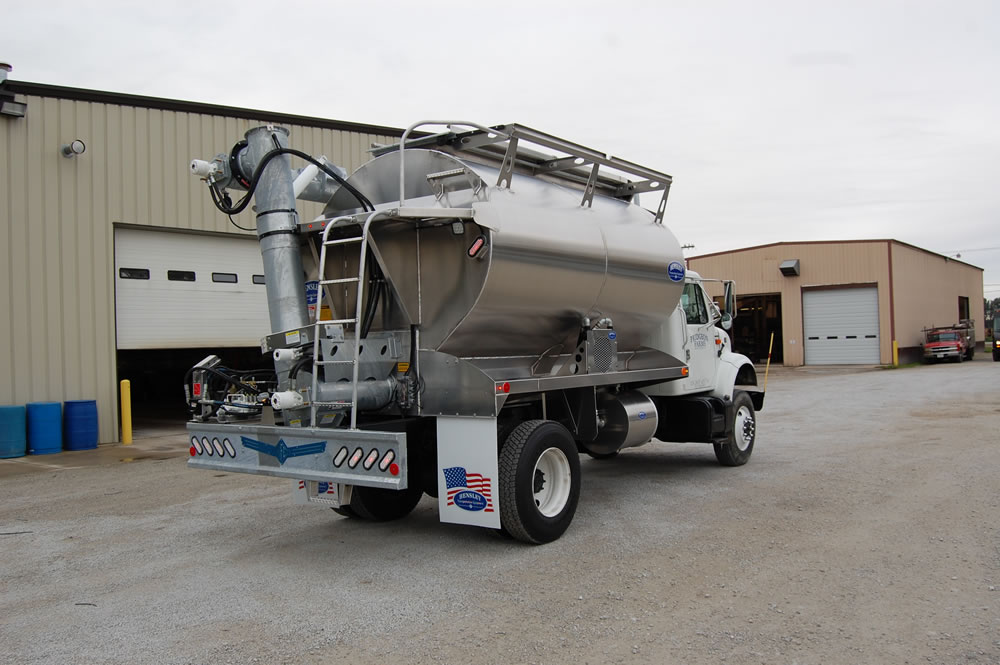

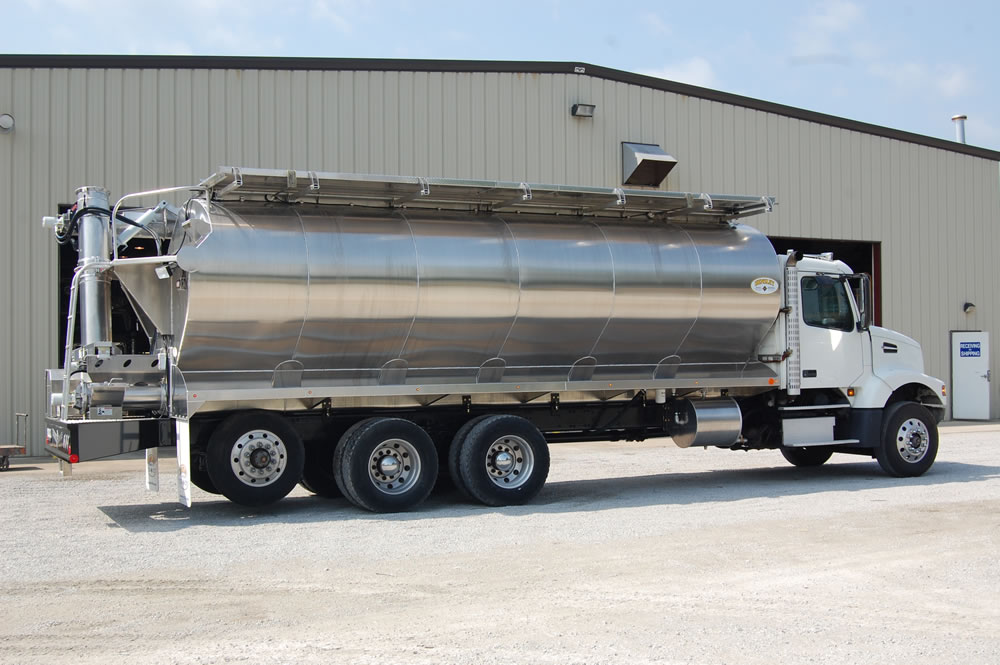

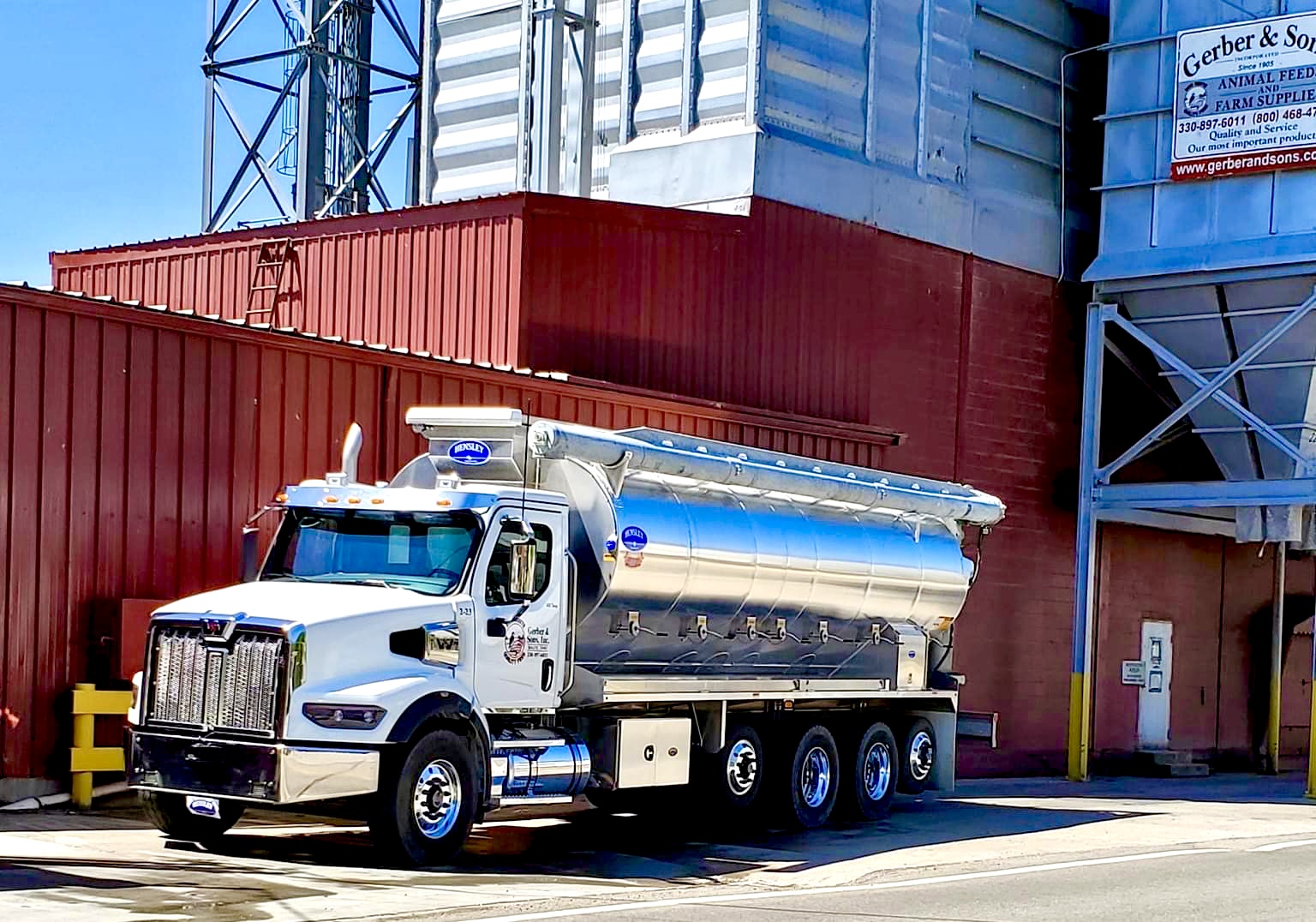

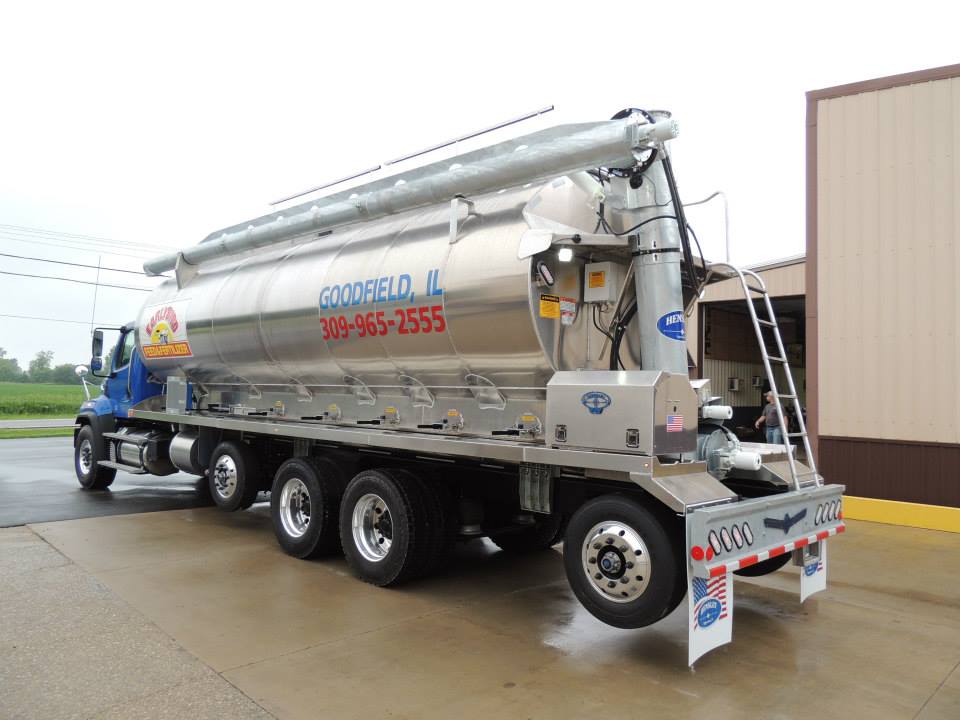

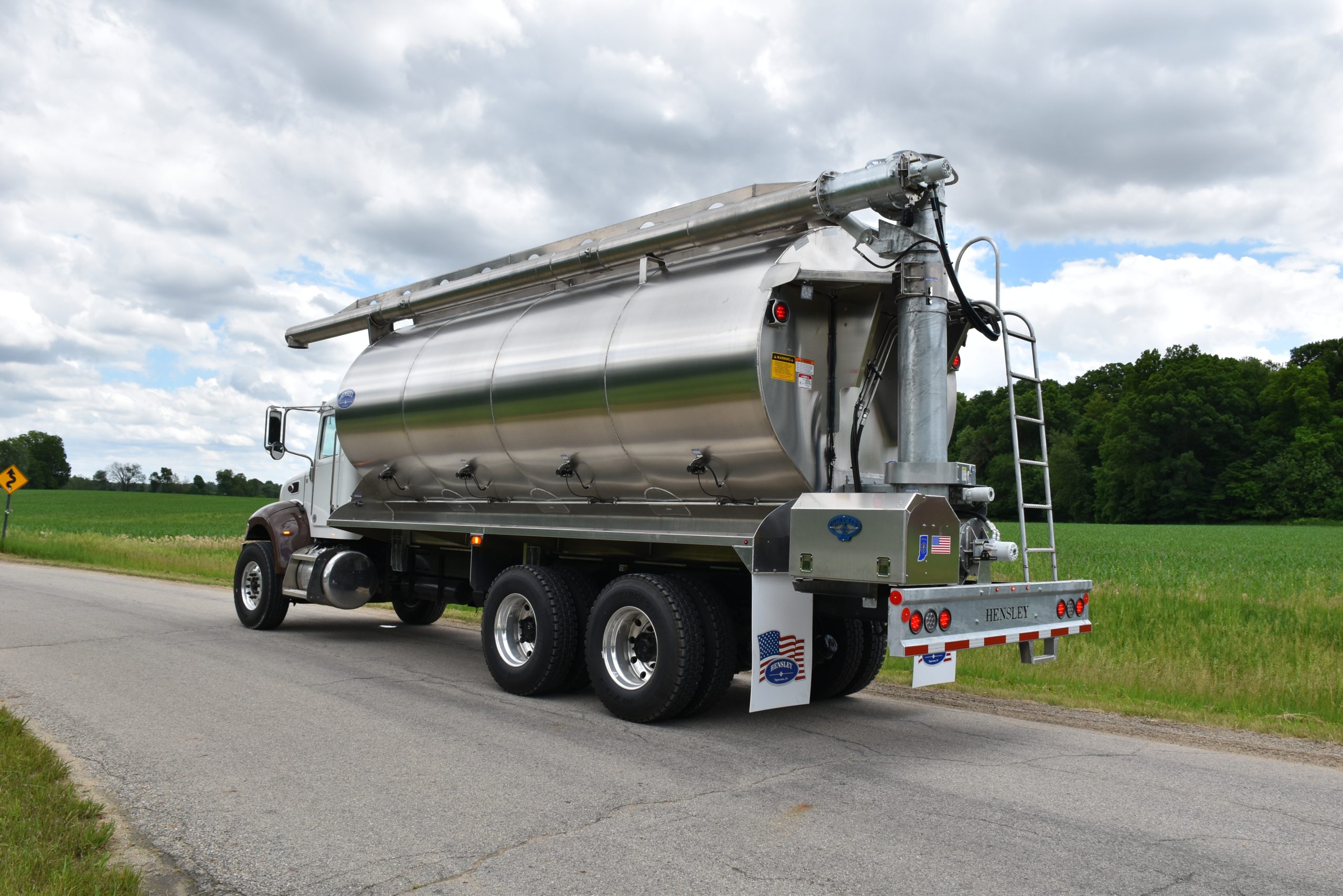

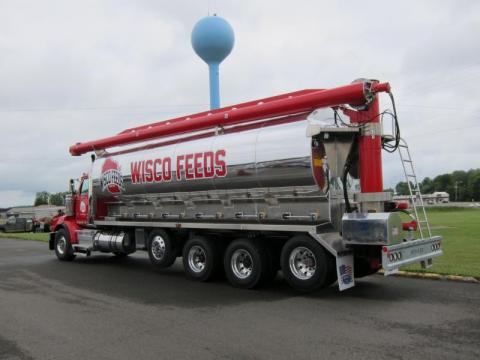

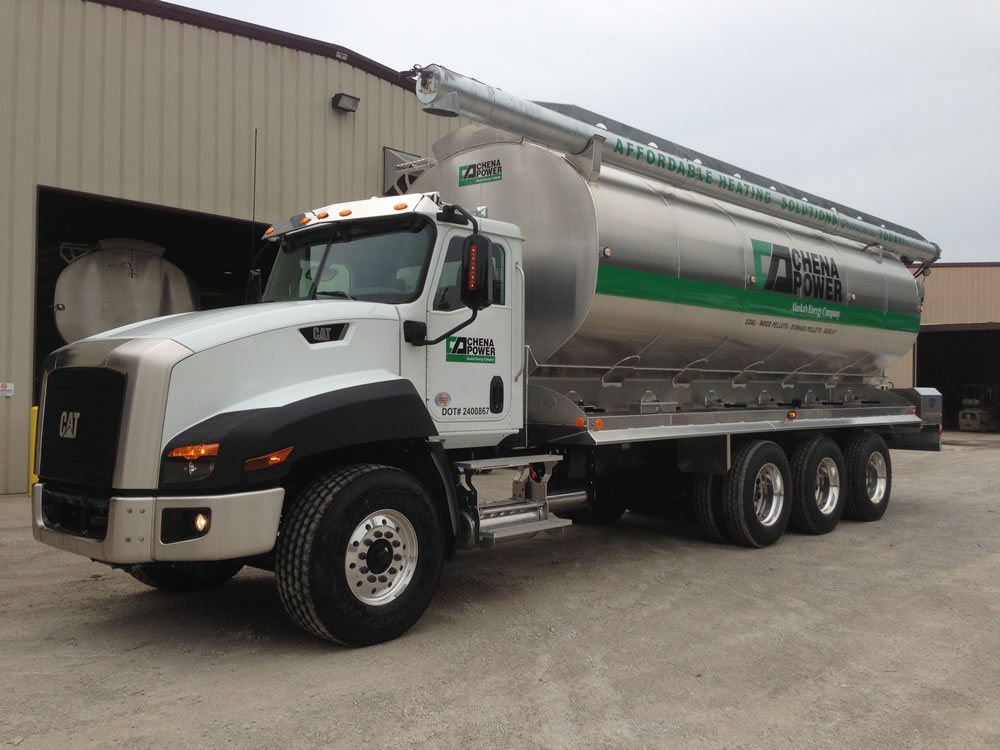

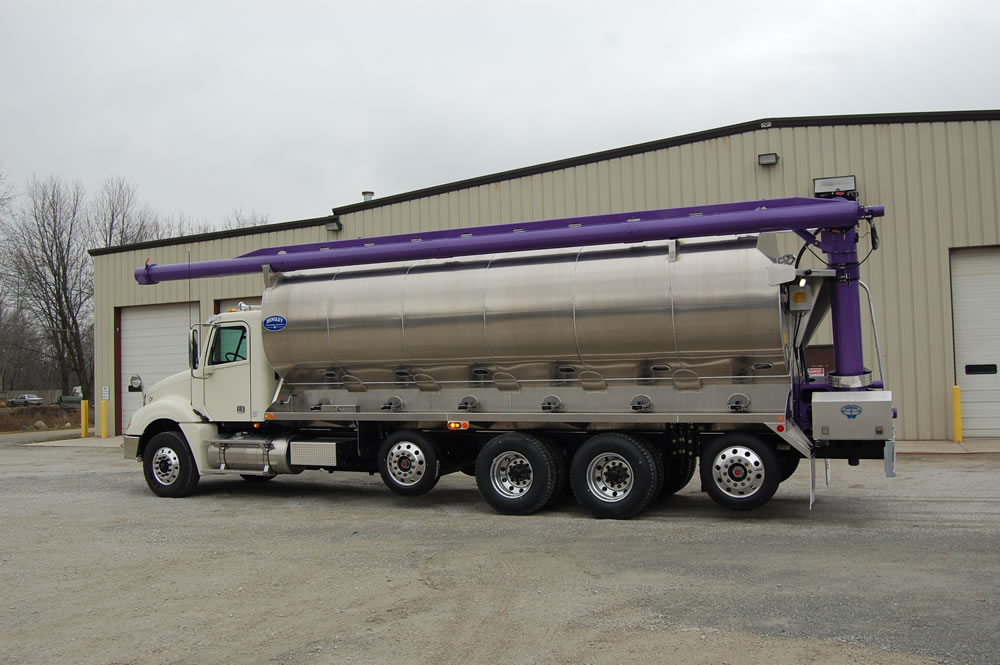

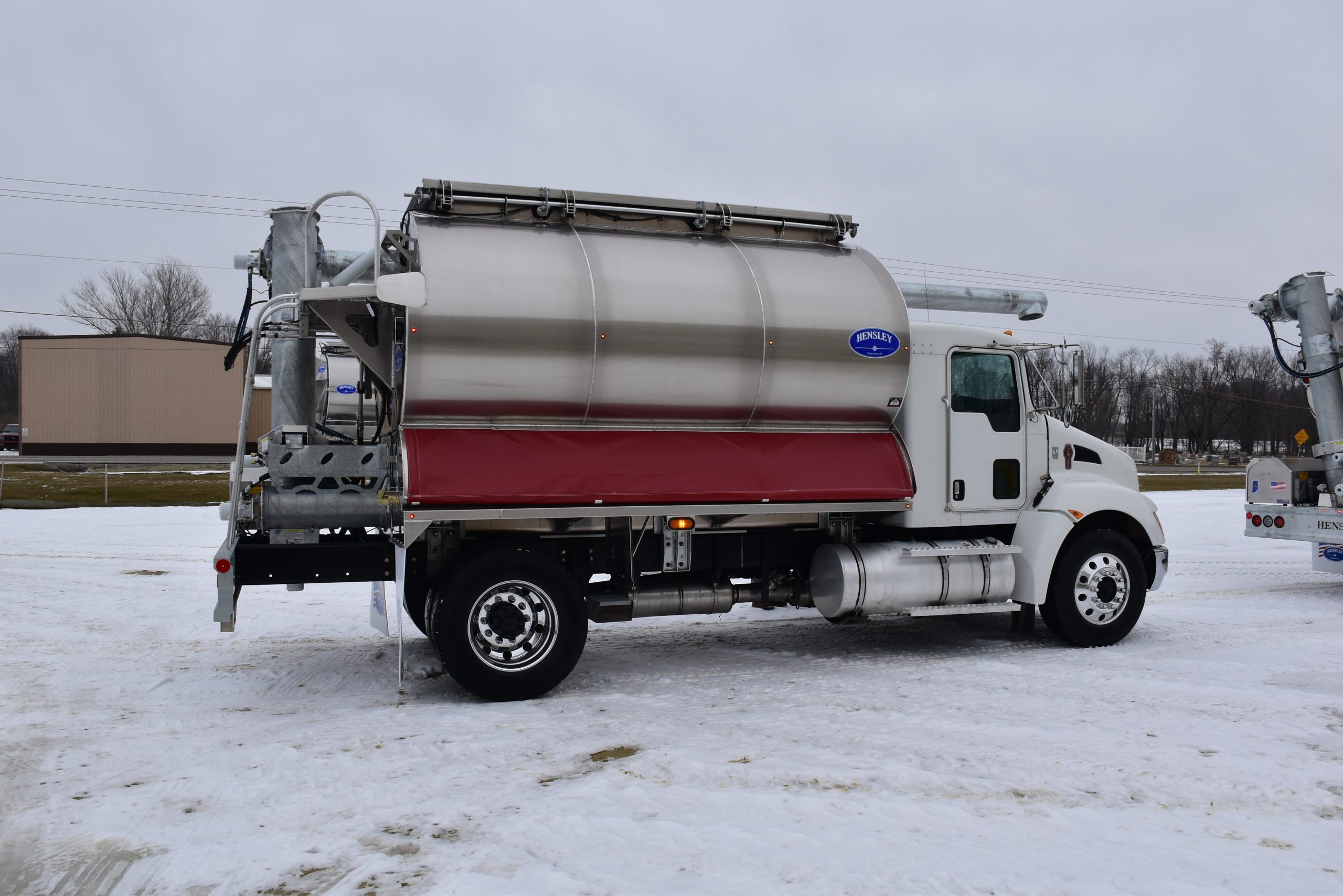

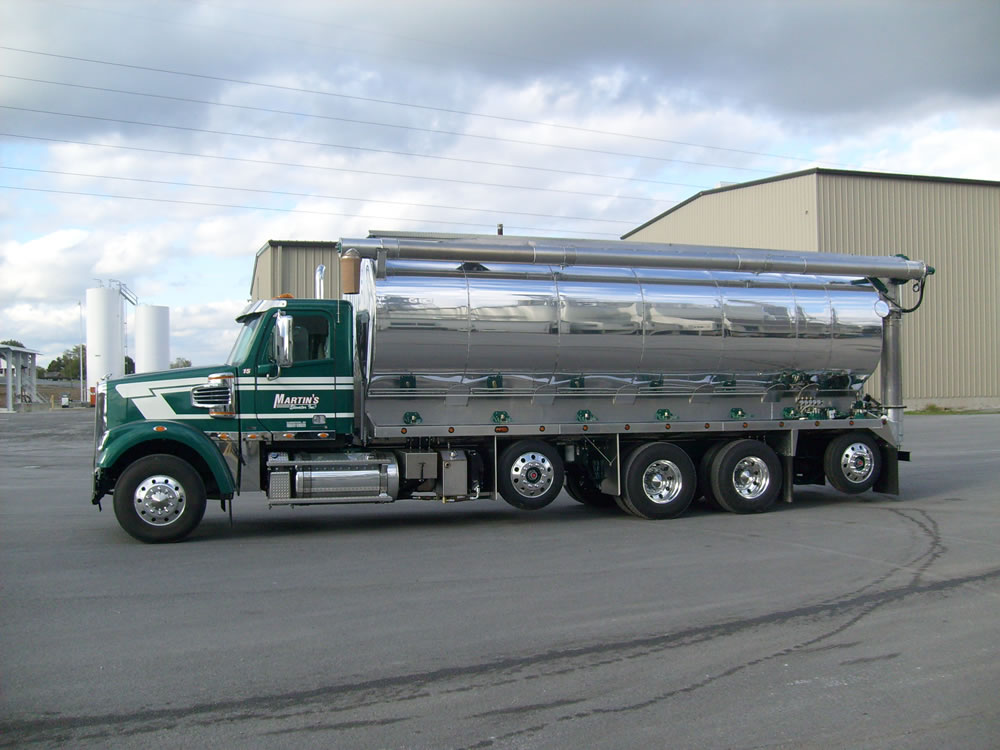

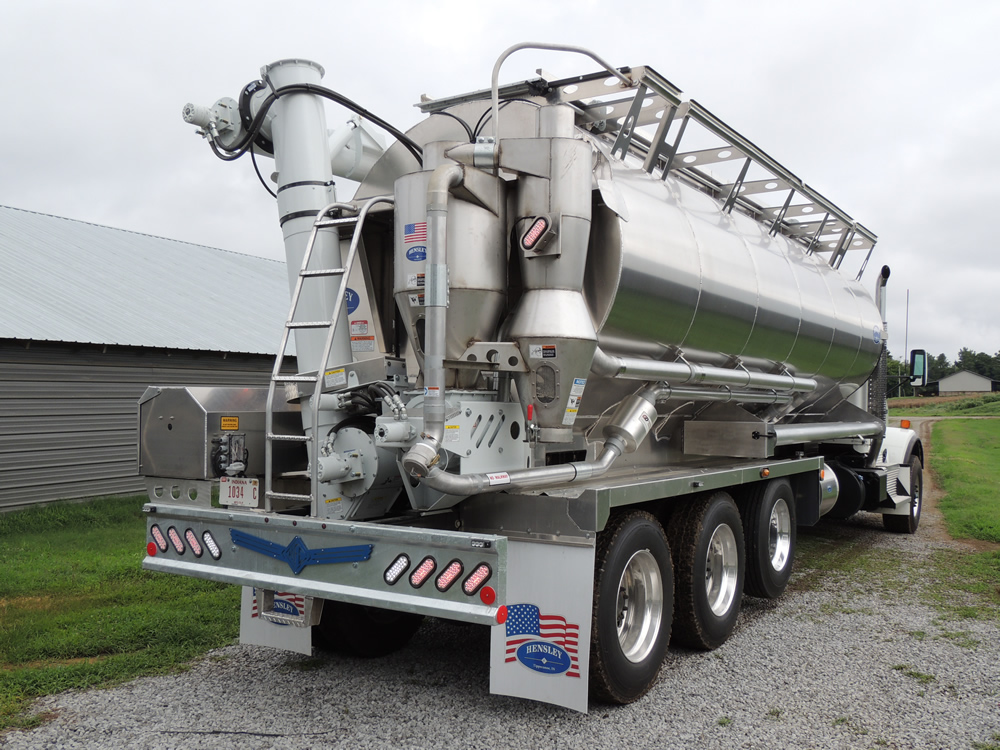

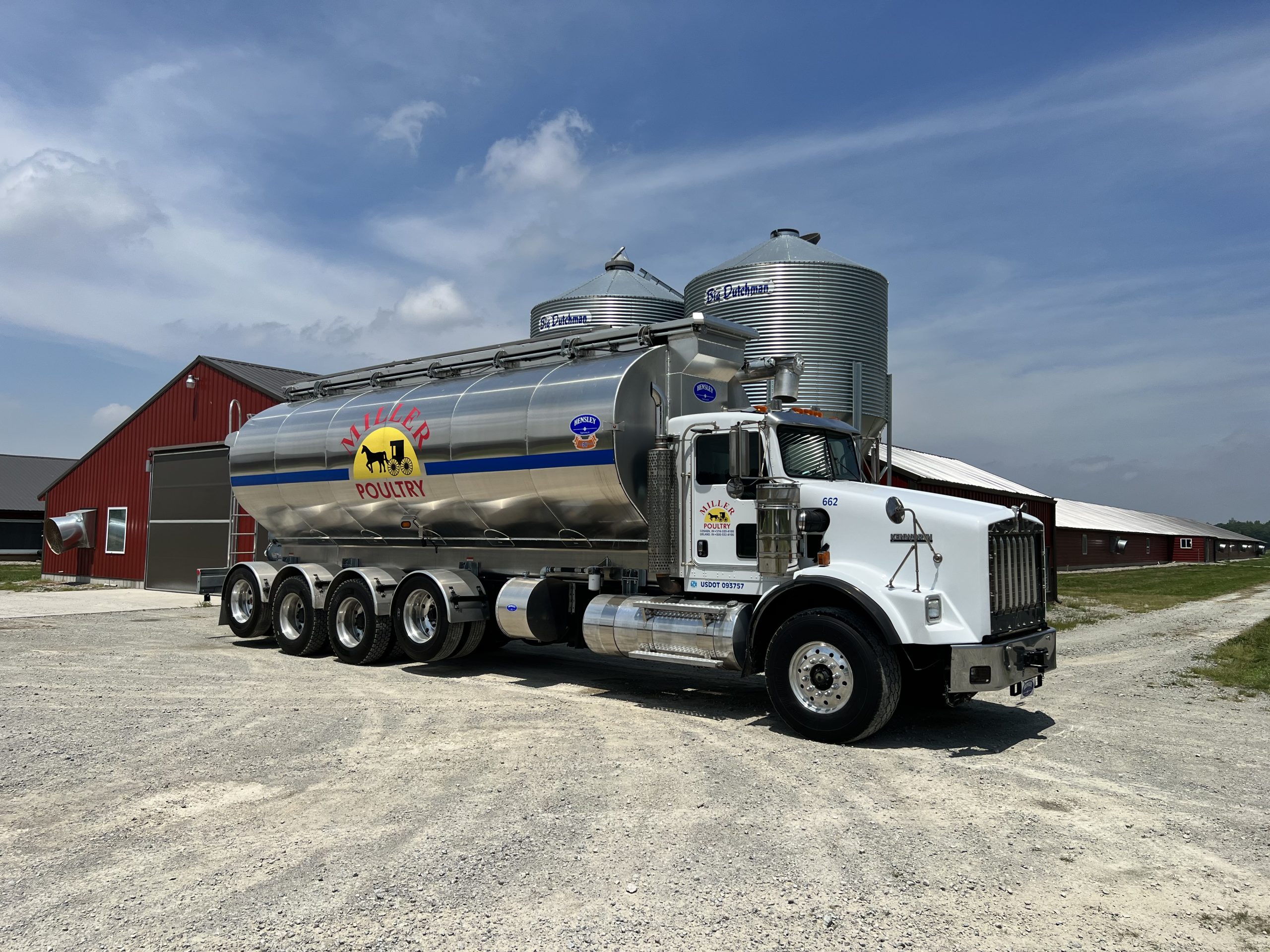

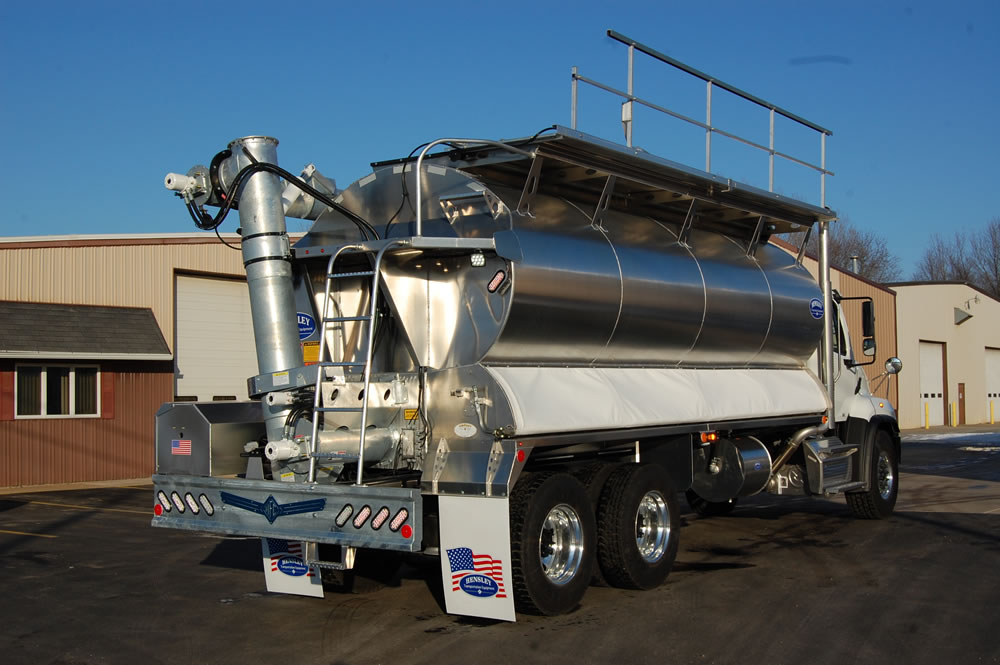

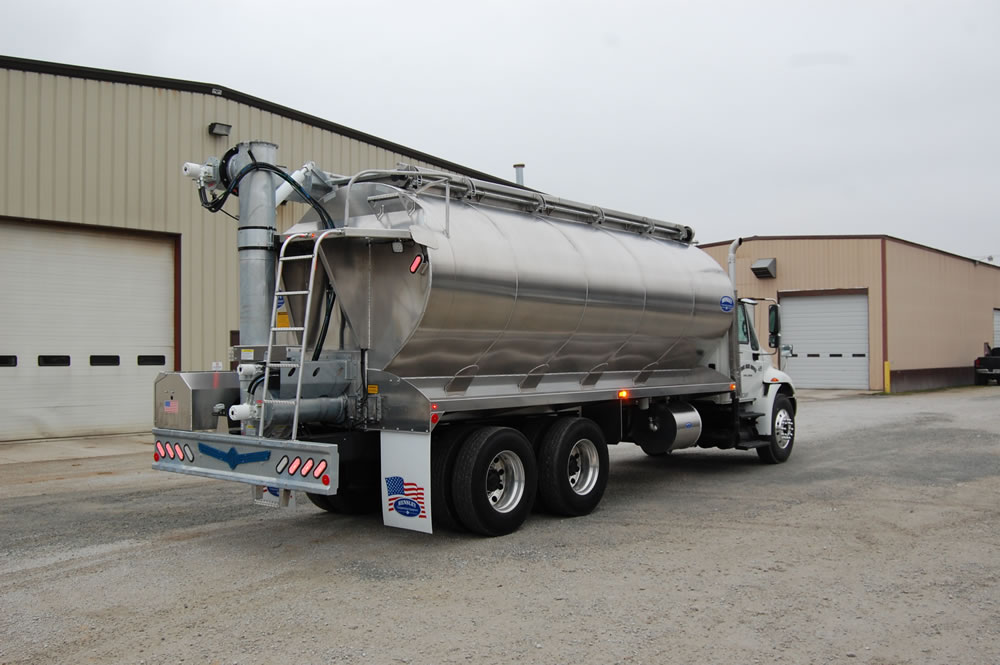

Hensley Bulk Feed Bodies
Hensley Bulk Feed Bodies are the highest quality Bulk Feed Bodies on the Market today. No other company gives you as many options as Hensley All-Aluminum Bulk Feed Body. We offer bodies from 6′ long through 28′ long tanks, and various discharge options are available as well with Auger, Air or Air/Auger Combination.

Features
- 3/8” Long Sills – 5086 Tanker/Trailer Aluminum
- 1/2” Thick End Plates – 6061 Aluminum Plate
- 1/8” Thick Side Wall And Dividers – 5052-H32 Aircraft Grade Aluminum
- 4” Extruded Aluminum Load Bearing Channels At Top Of Tank
- Floor U-Trough, Aluminum Construction

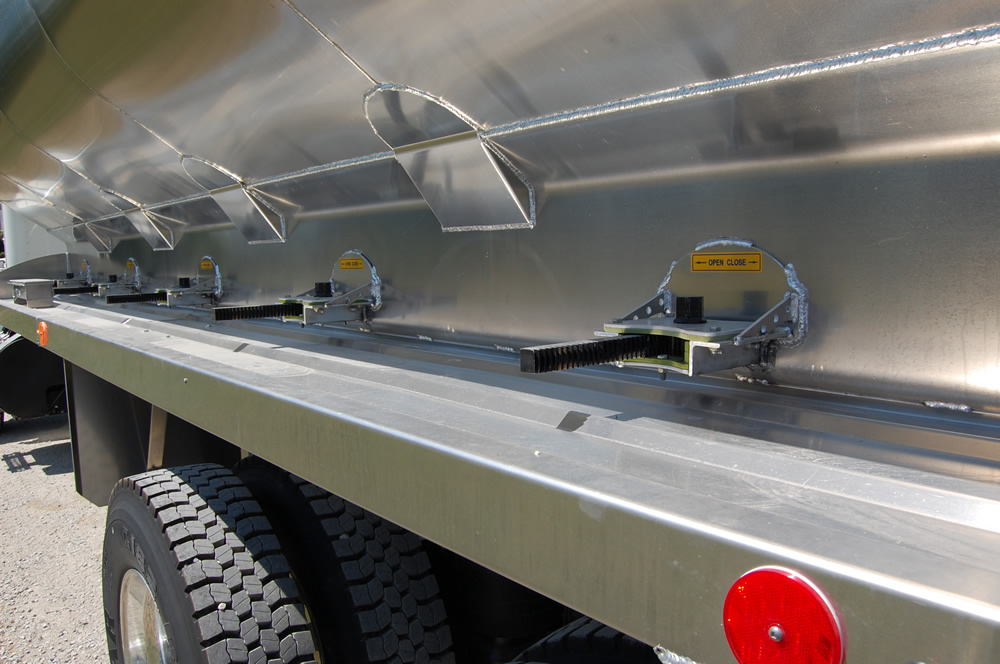

- Aluminum Manual Gate Controls On Each Compartment
- All Hydraulic Auger System
- Generation II Auger System – Spring Mounted Motors to reduce Spline Wear
- Parker Direct Drive Motors with 1 1/4″ Spline Shafts
- 25 Ft. Long Discharge Auger
- Steel Parts Primed with Epoxy Primer and PPG White Acrylic Enamel
- Sloped Auger Flighting With 2” I.D. Sch. 80 Pipe – REDUCES PRODUCT DAMAGE
- Split Woodblock Bearings in Discharge and Floor Auger

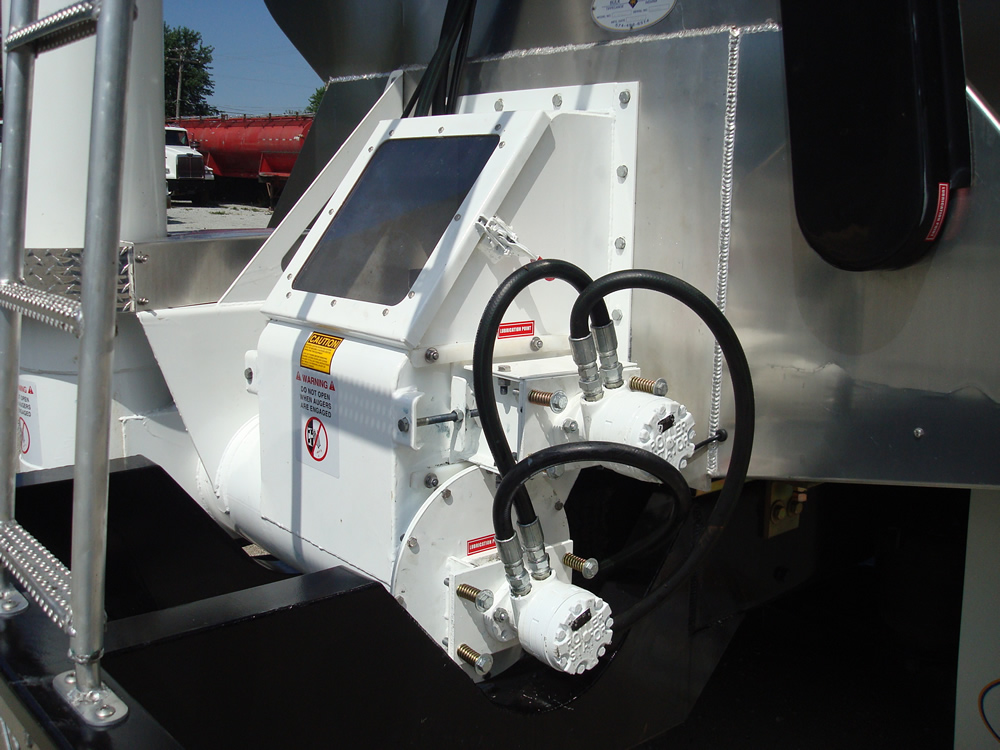

- Heavy Duty Hydraulic Motor on Floor Auger – Mounted At The Rear
- Variable Speed Control On Floor Auger
- 50-1 Superior Gearbox – Single # 80 Roller Chain
- Turning Device Relief Valves (Gearbox And Chain Protection)
- Valve Bank With Lock Valve On Boom Cylinder
- Hydraulic Controls located at Rear Driver’s Side

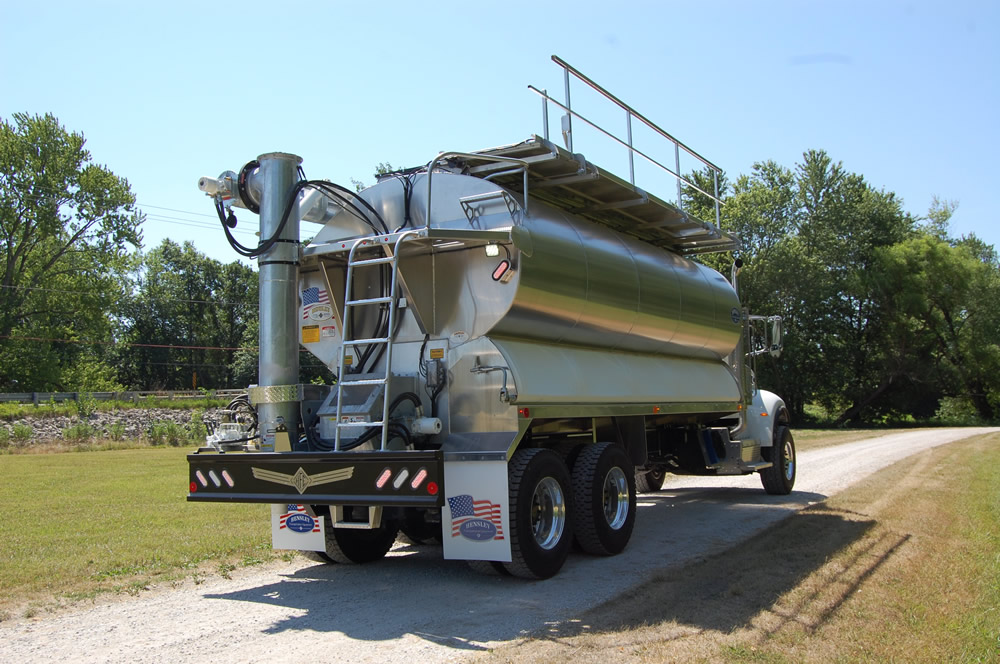

- Rear Ladder, Center Mount
- Rear Tray Safety Bar At Rear of Body
- Truck-Lite Completely Sealed Wiring System – All wiring run through Rubber Grommets – No Cuts Or Splices!
- Hot Dipped Galvanized Bumper With (2) Sets of Four Lights – RED-RED-RED-AMBER
- Impact Absorbing Bumper At Rear
- High Mount Stop/Turn Lights – (1) Red, (1) Amber
- Hensley Logo/American Flag Anti-Sail Mud flaps
- Aluminum Mud Guards Ahead of Foremost Axle
- Conspicuity Tape
- Full Length Aluminum Bagrails – Both Sides













Options
