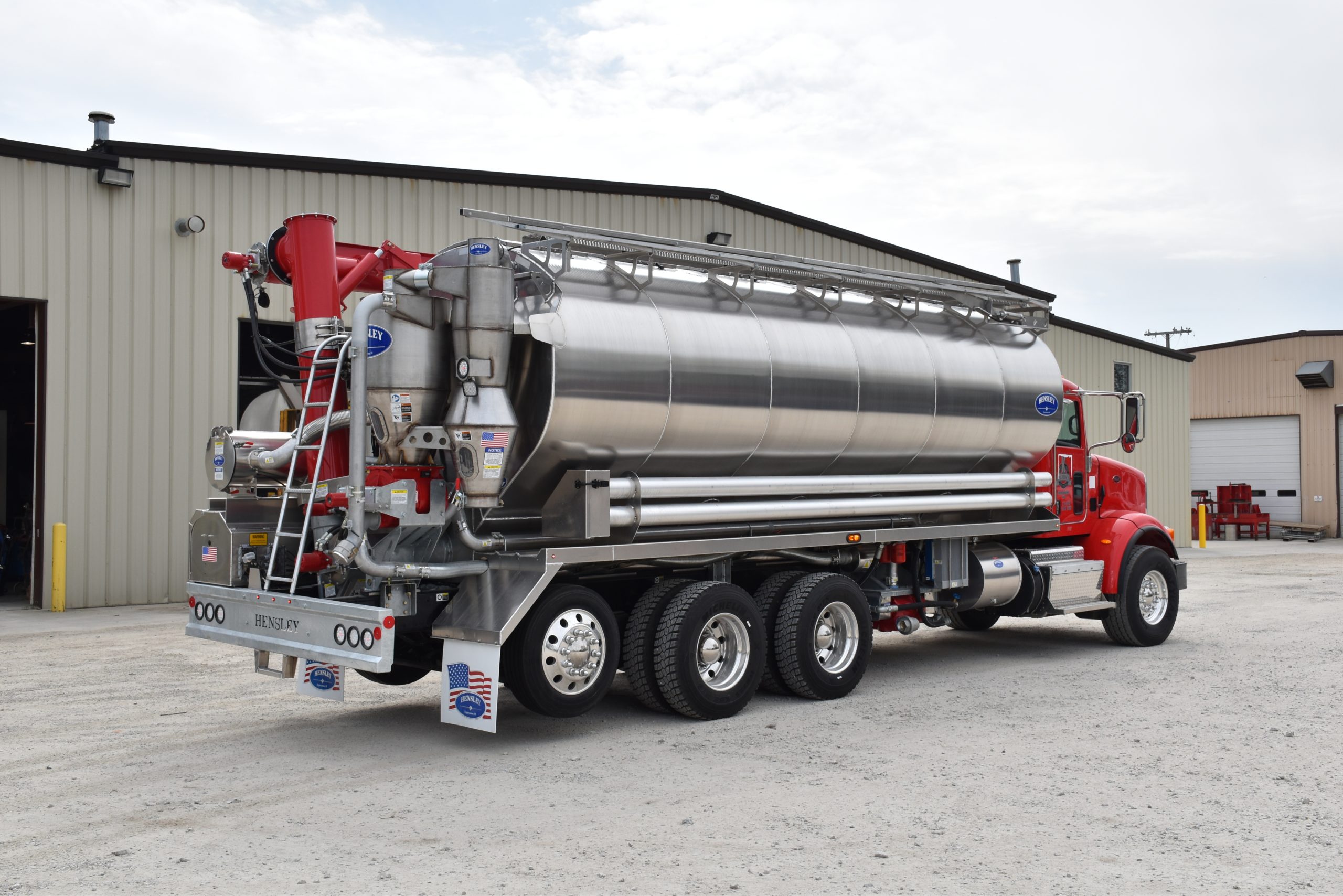

Pneumatic Feed Reclaim Units – Hensley Vac

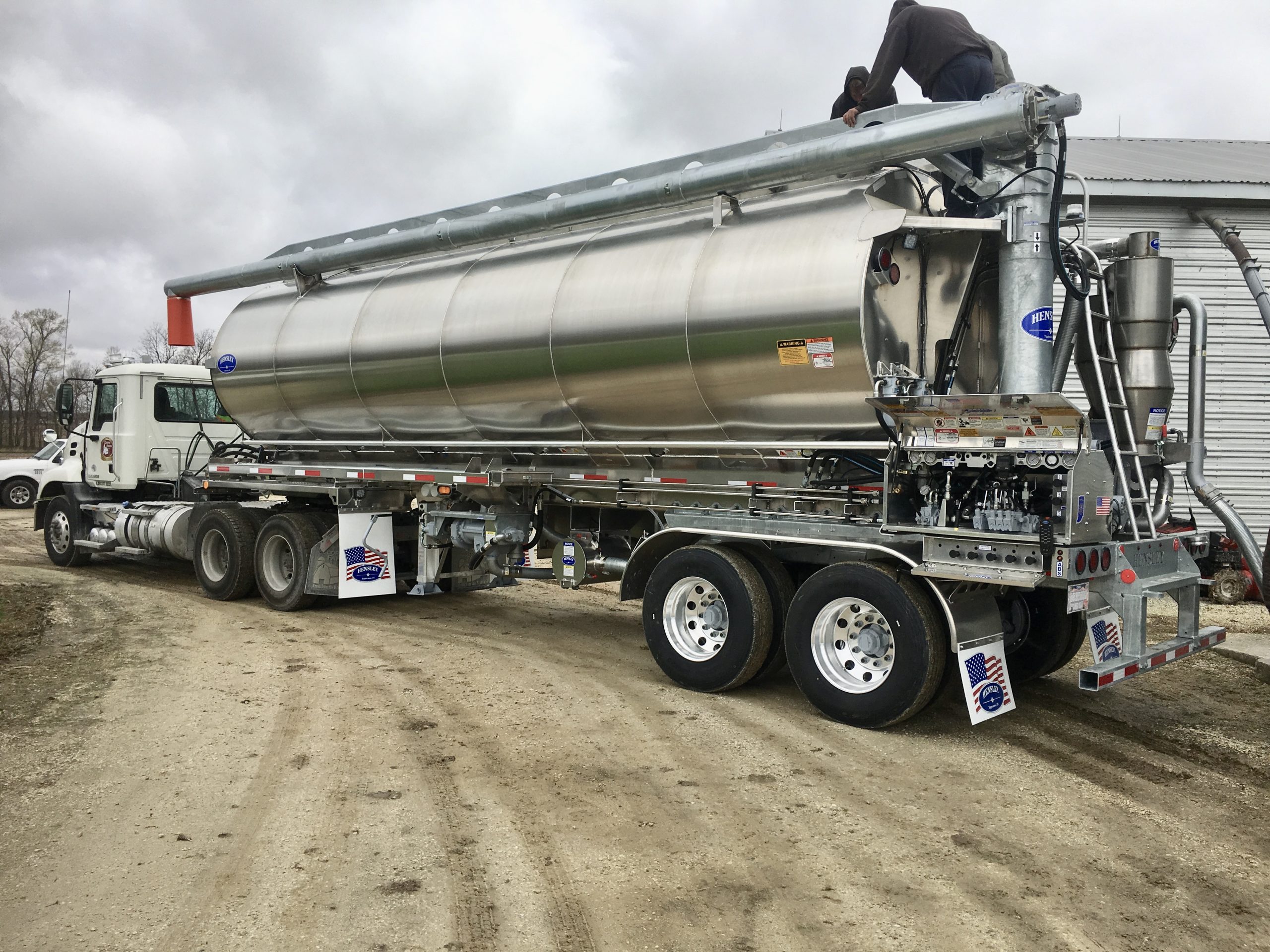

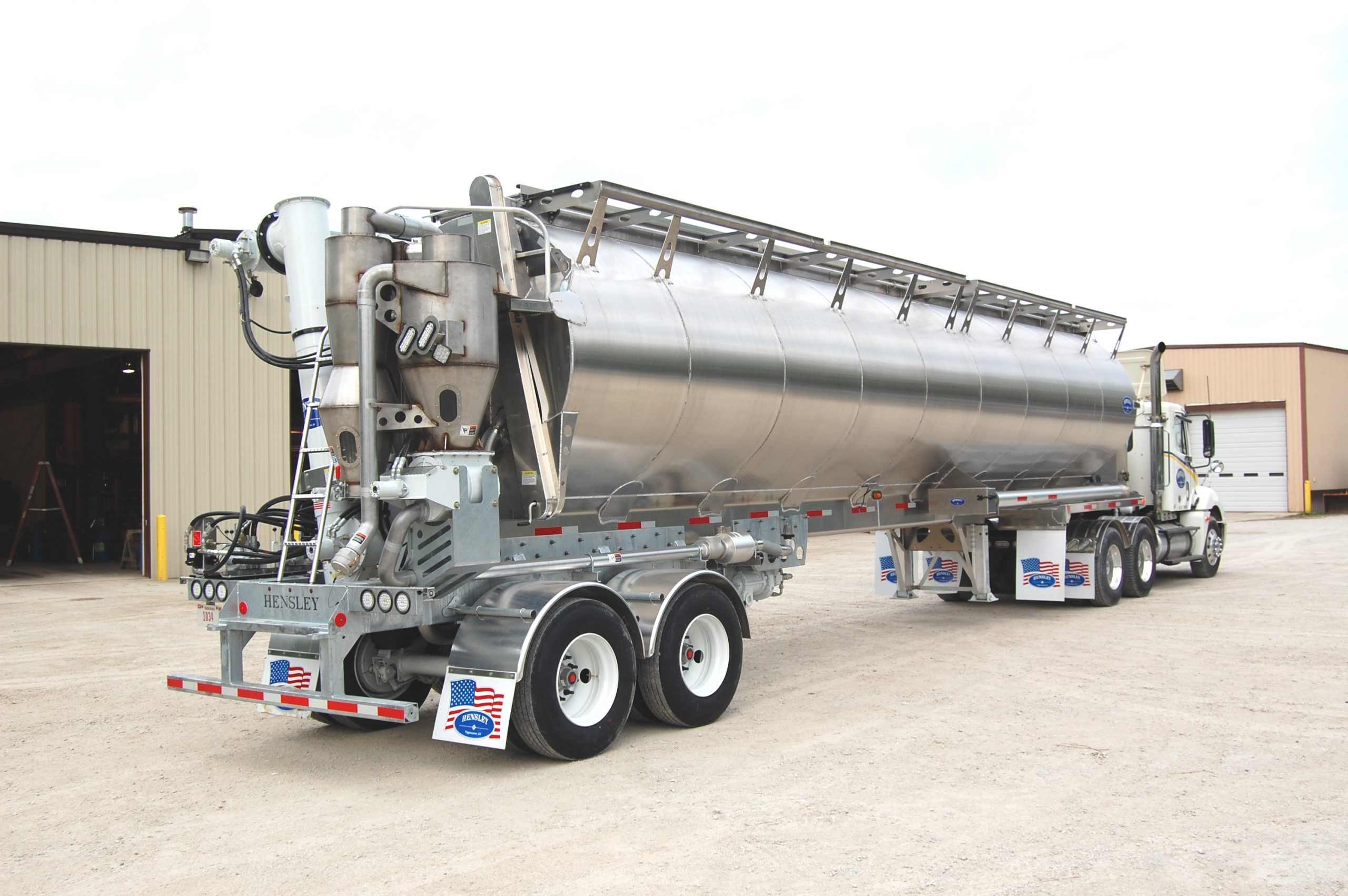

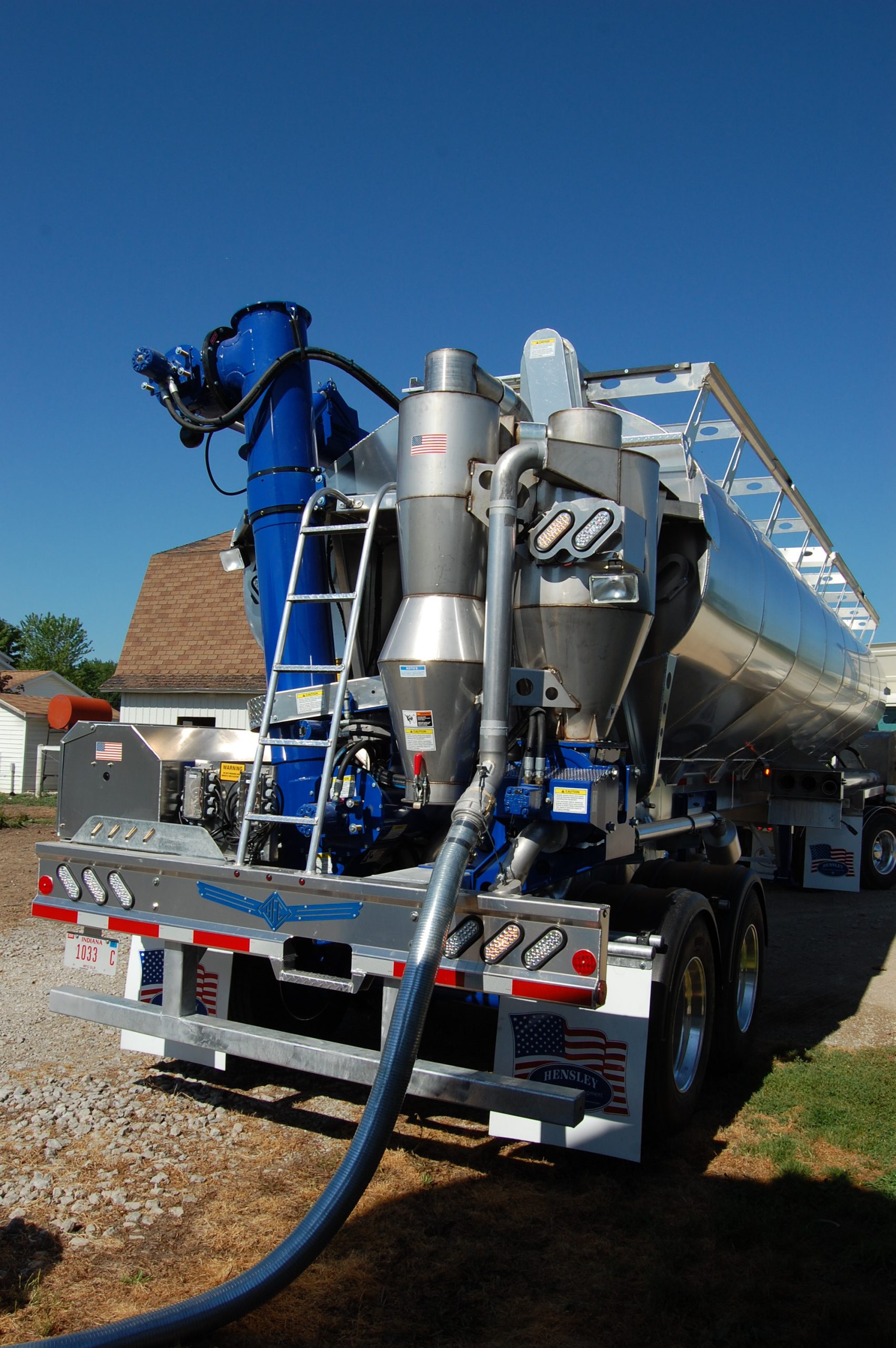

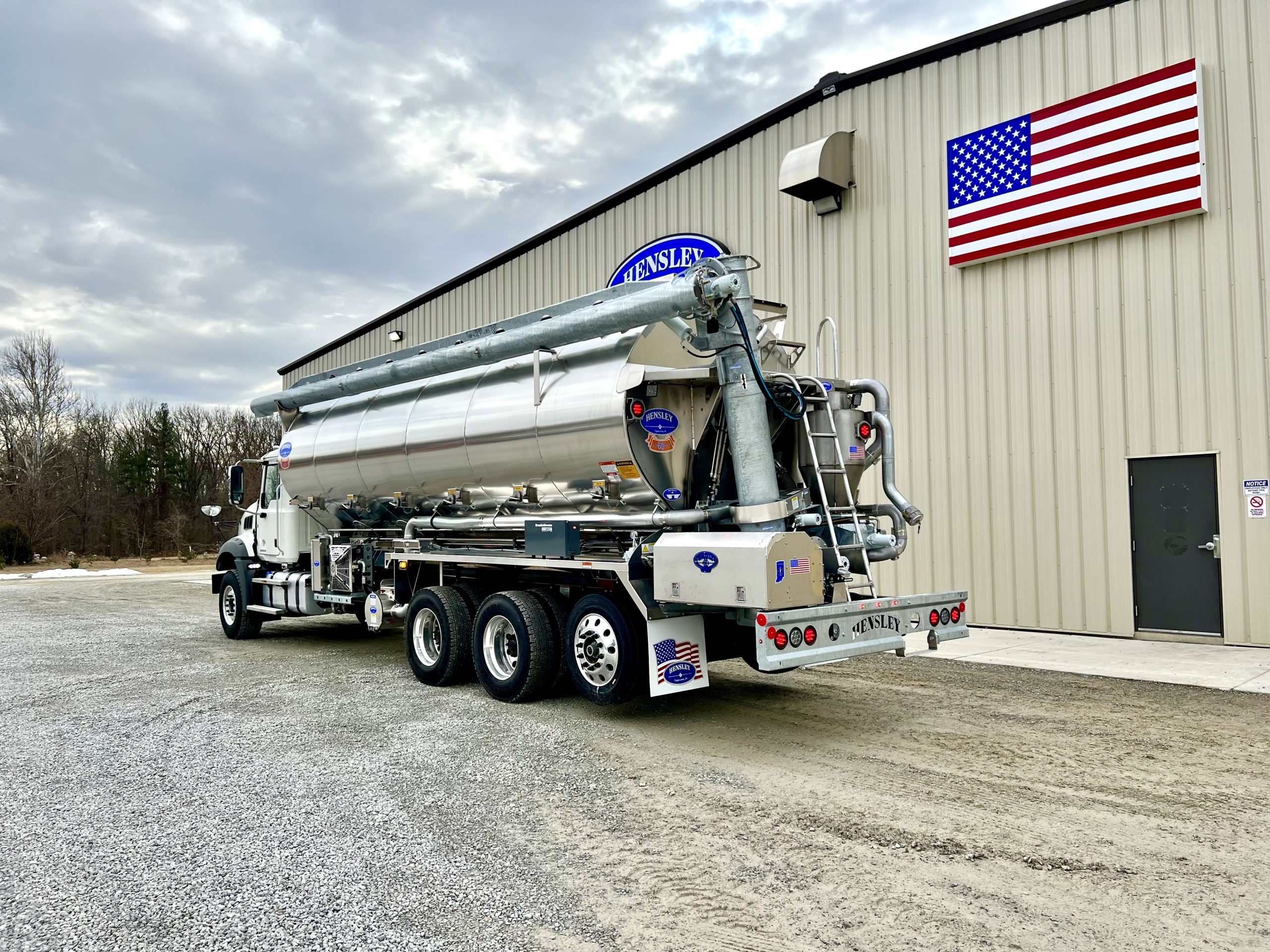

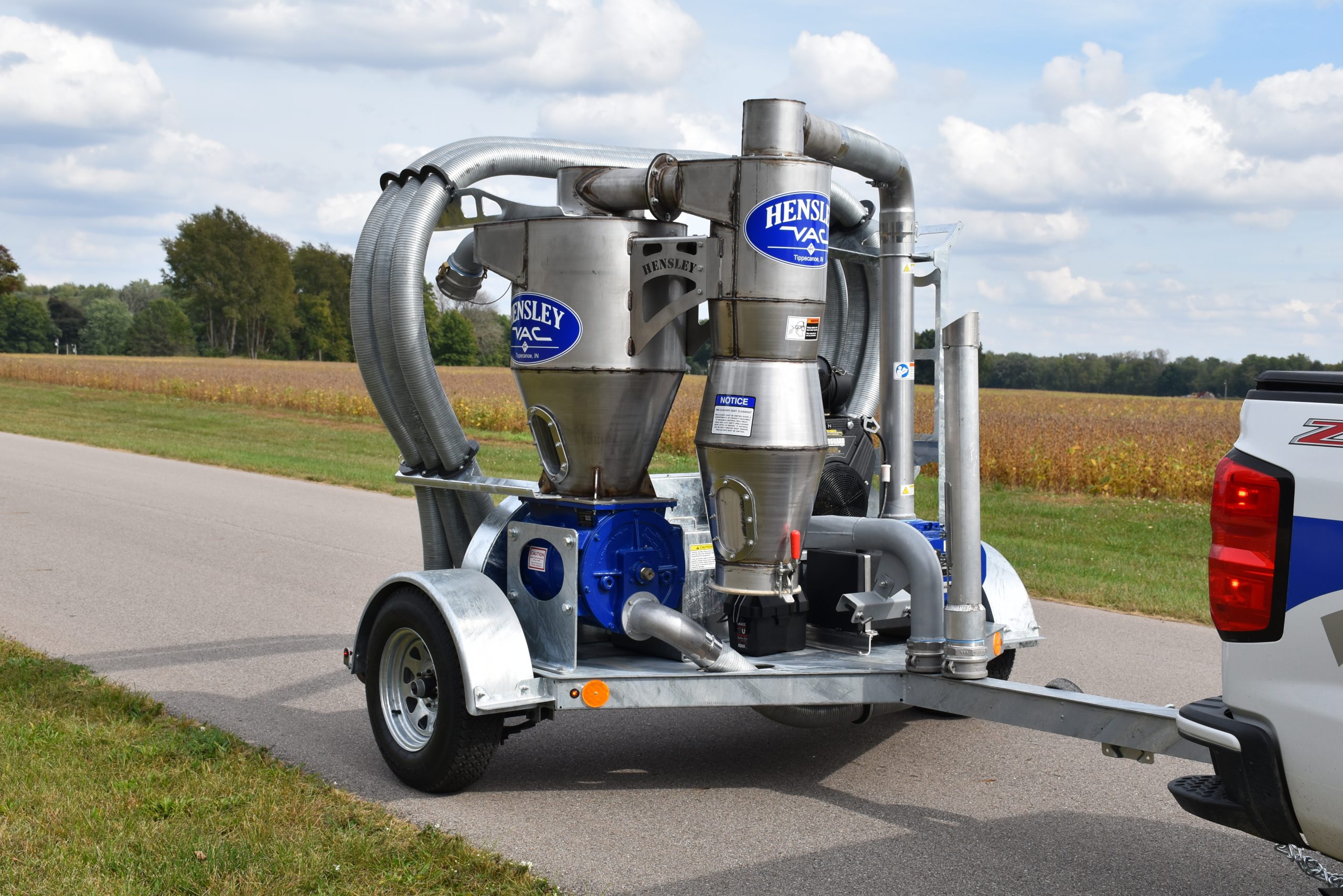

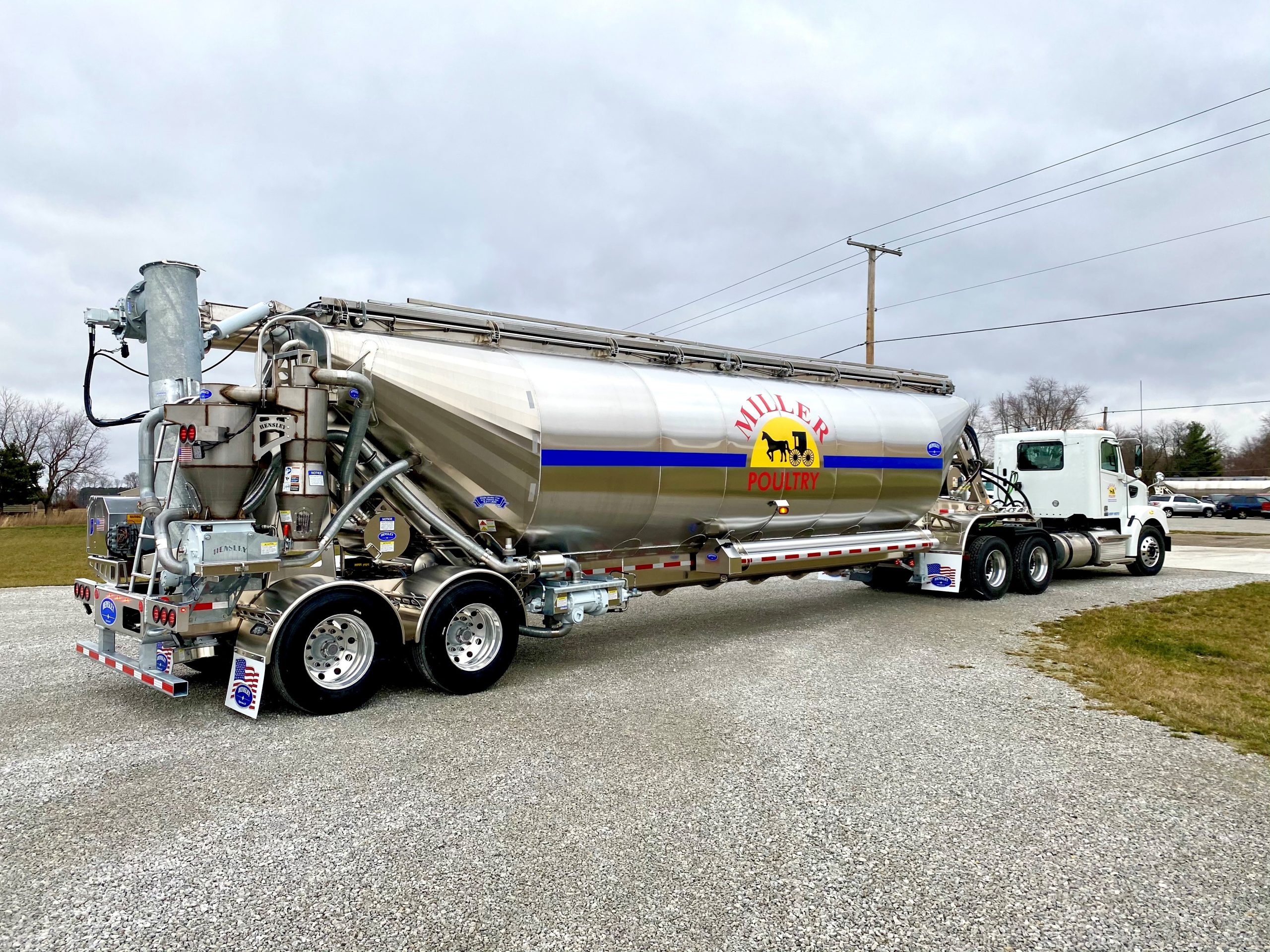

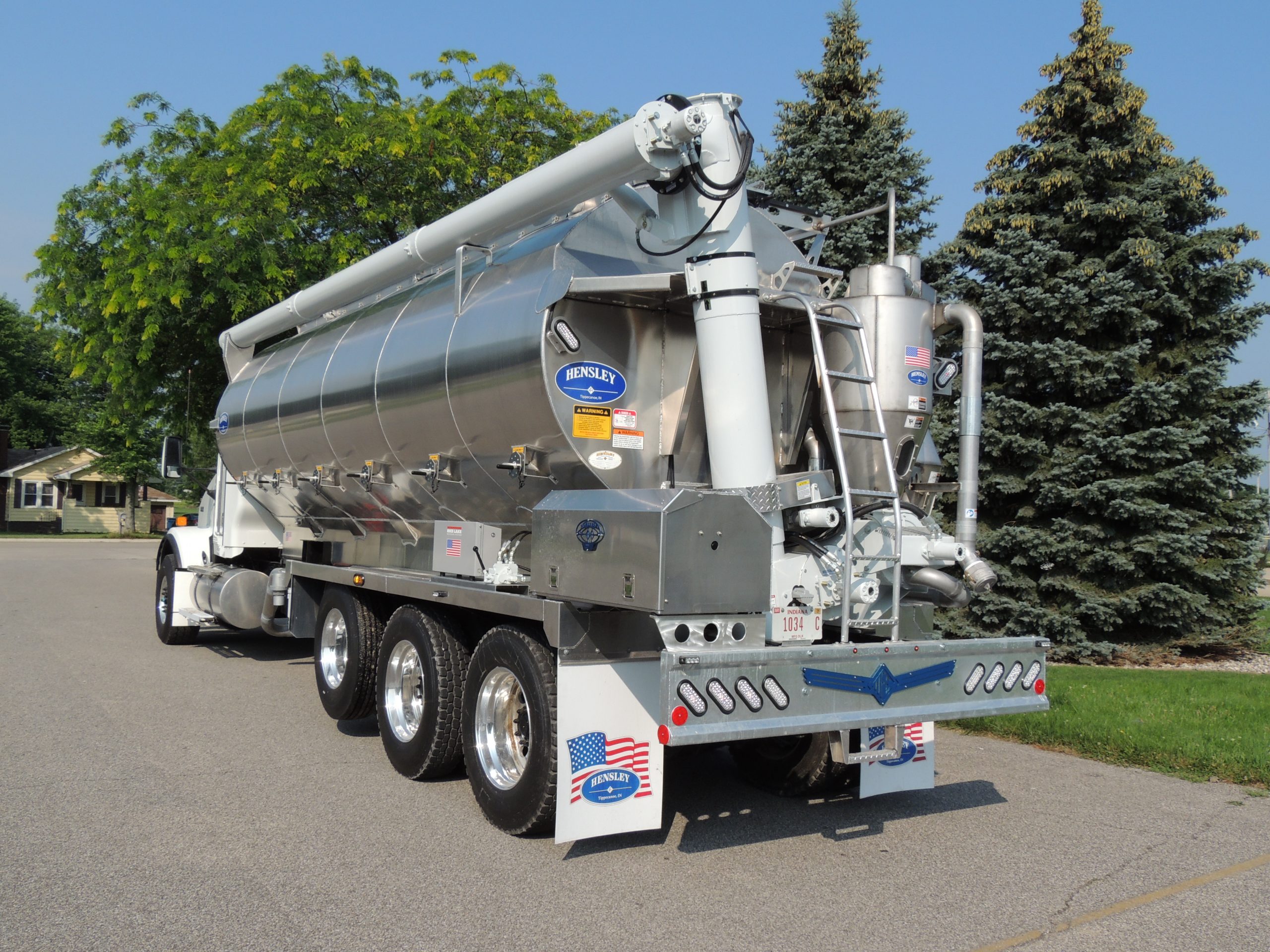

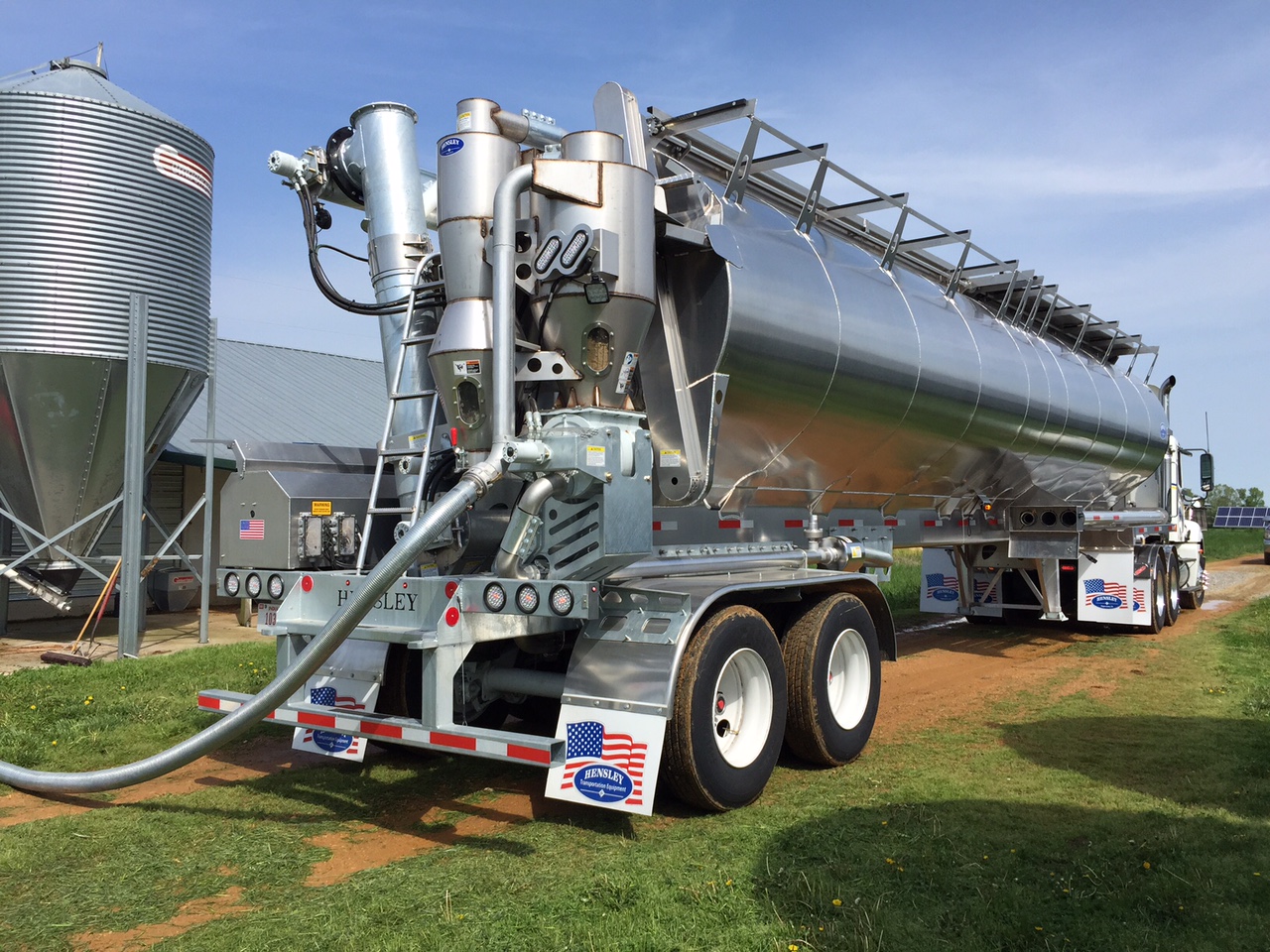

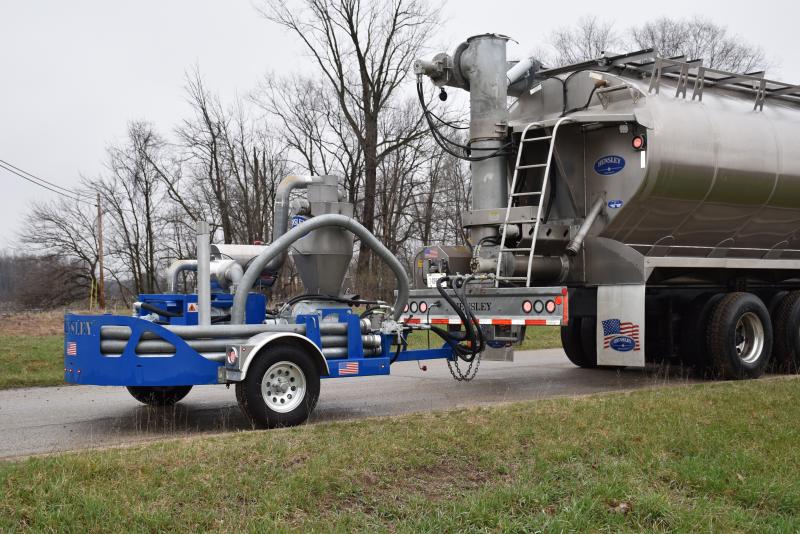

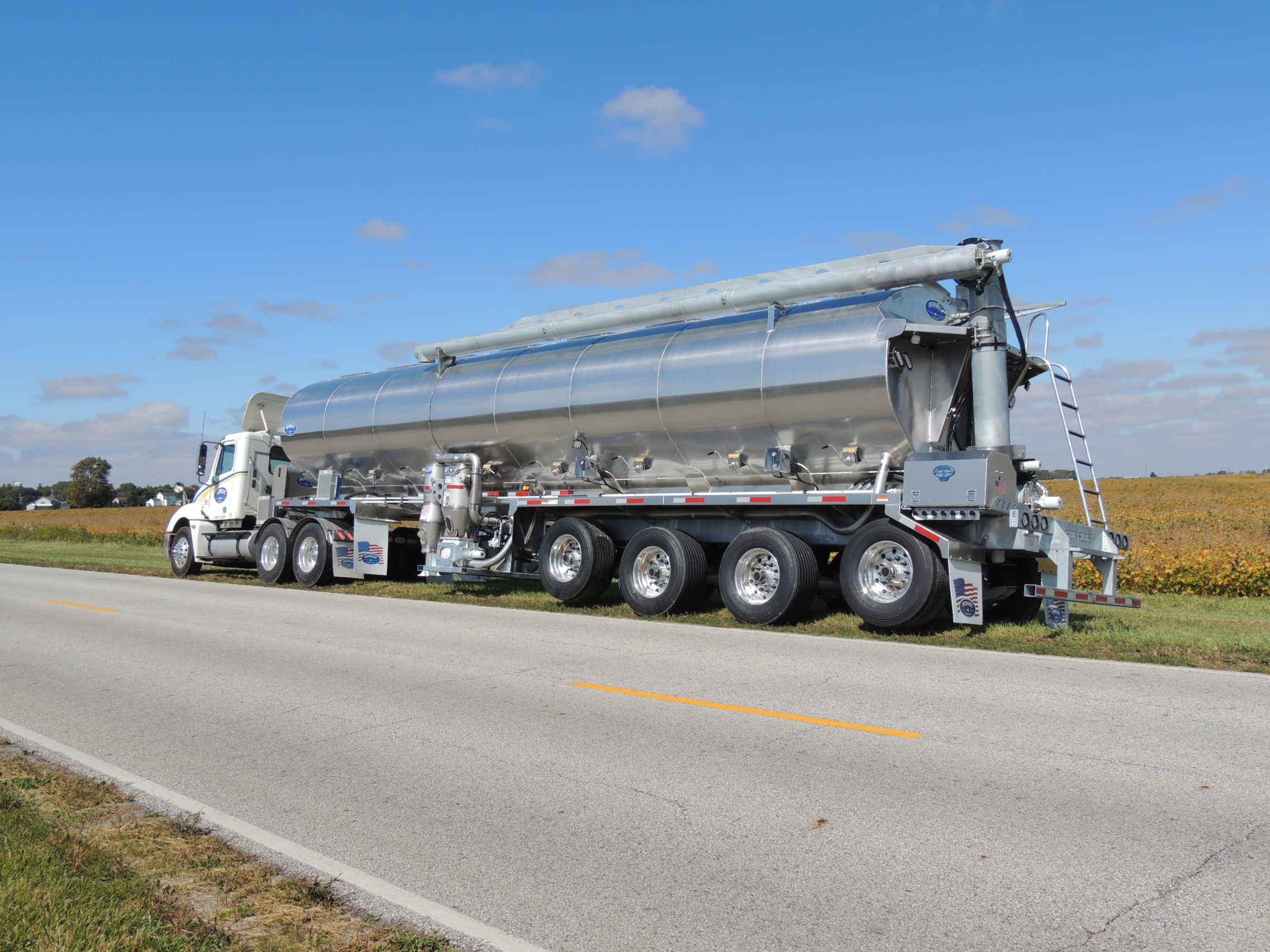

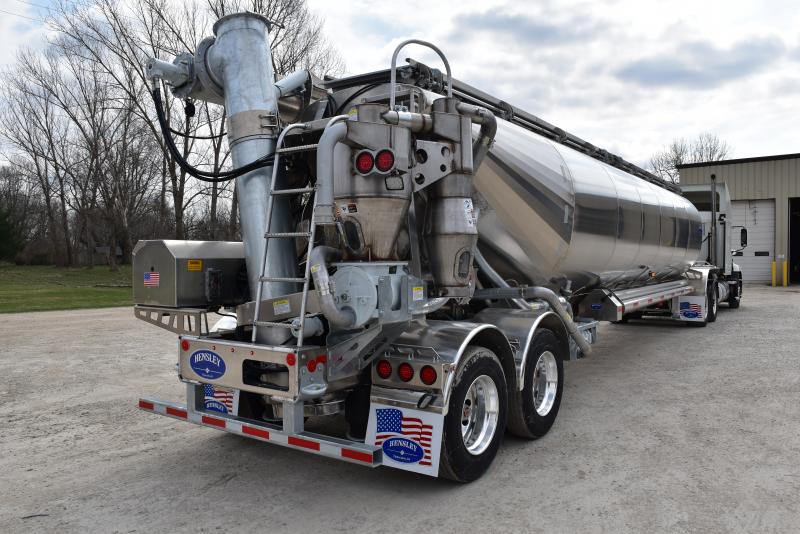

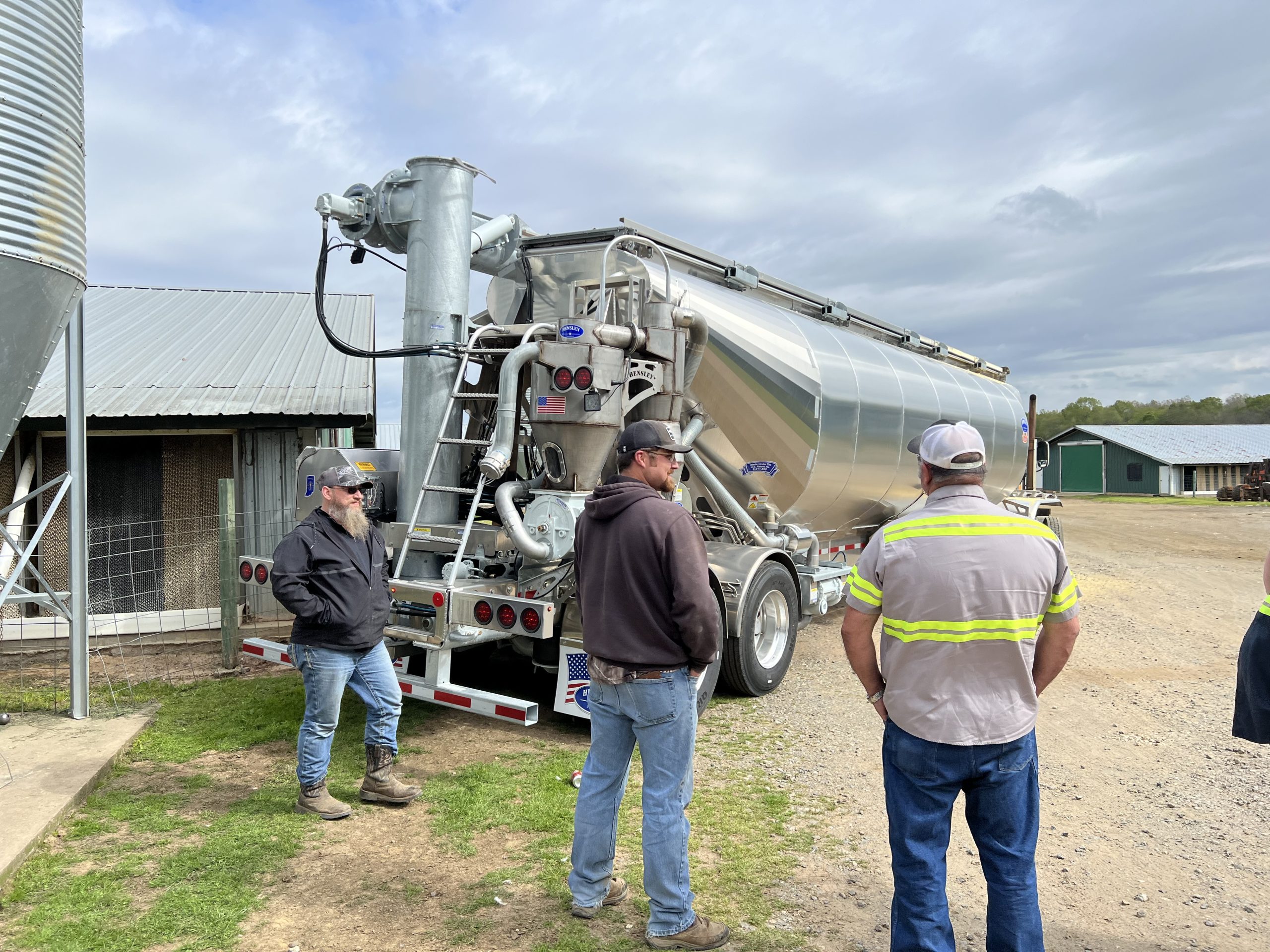

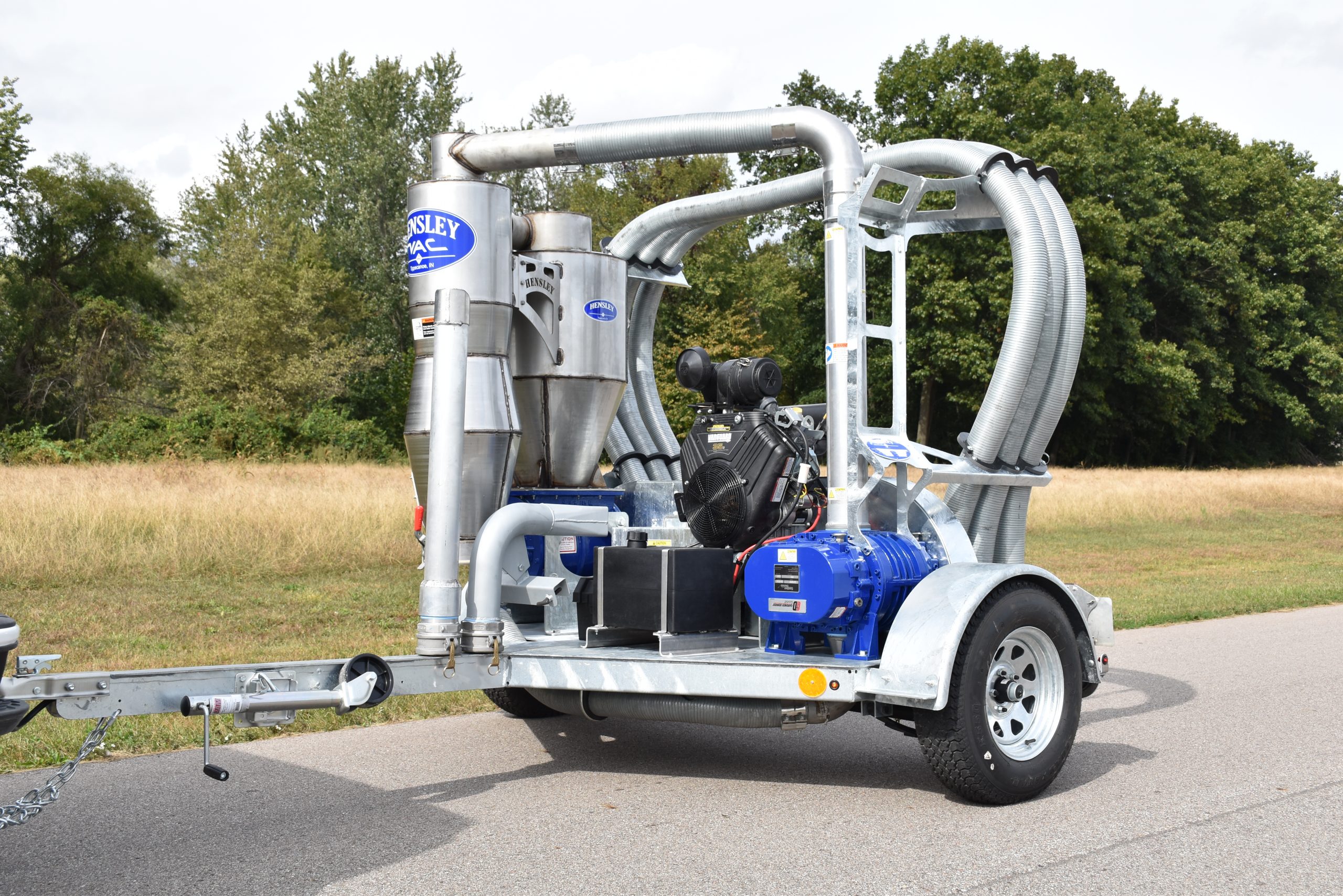

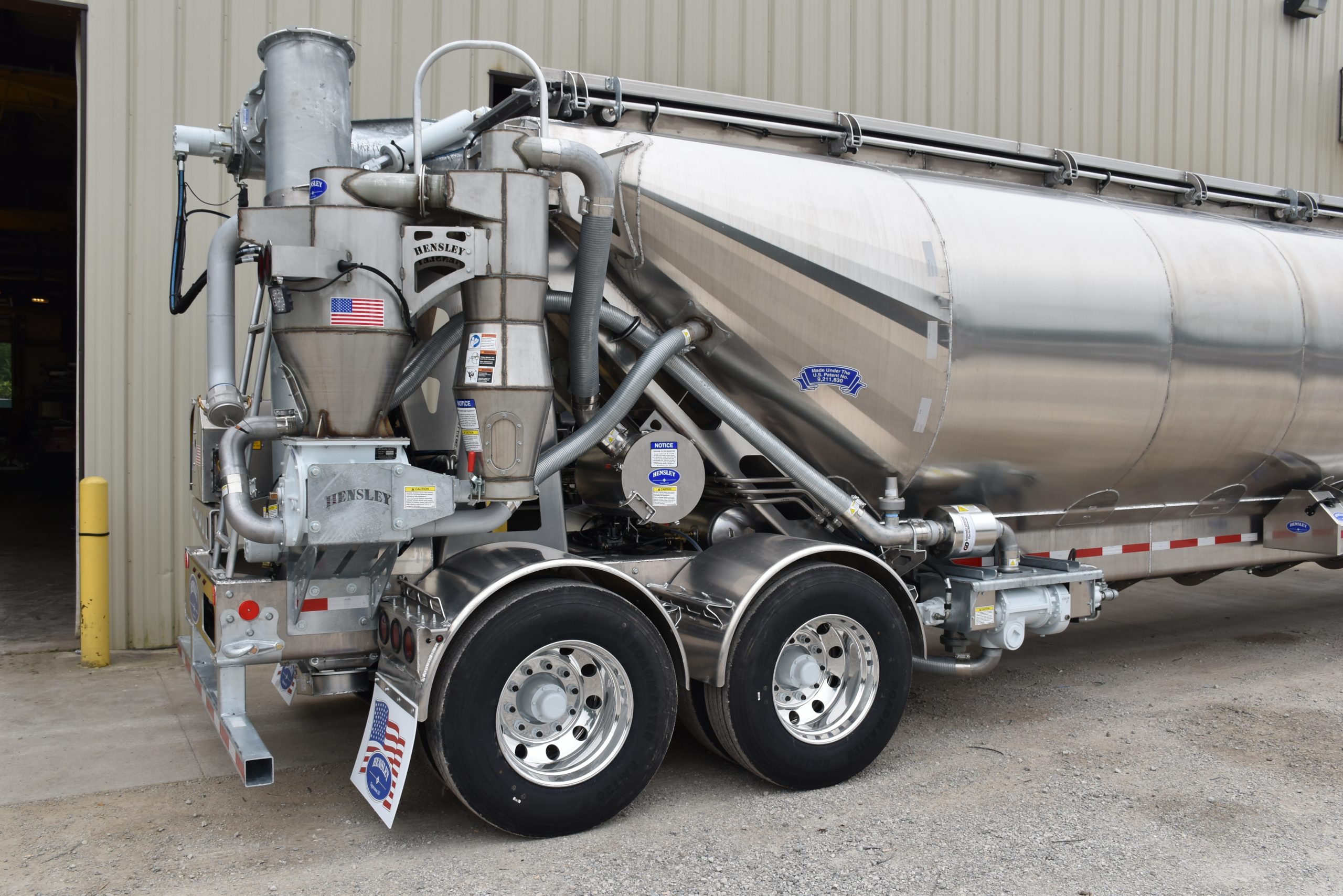

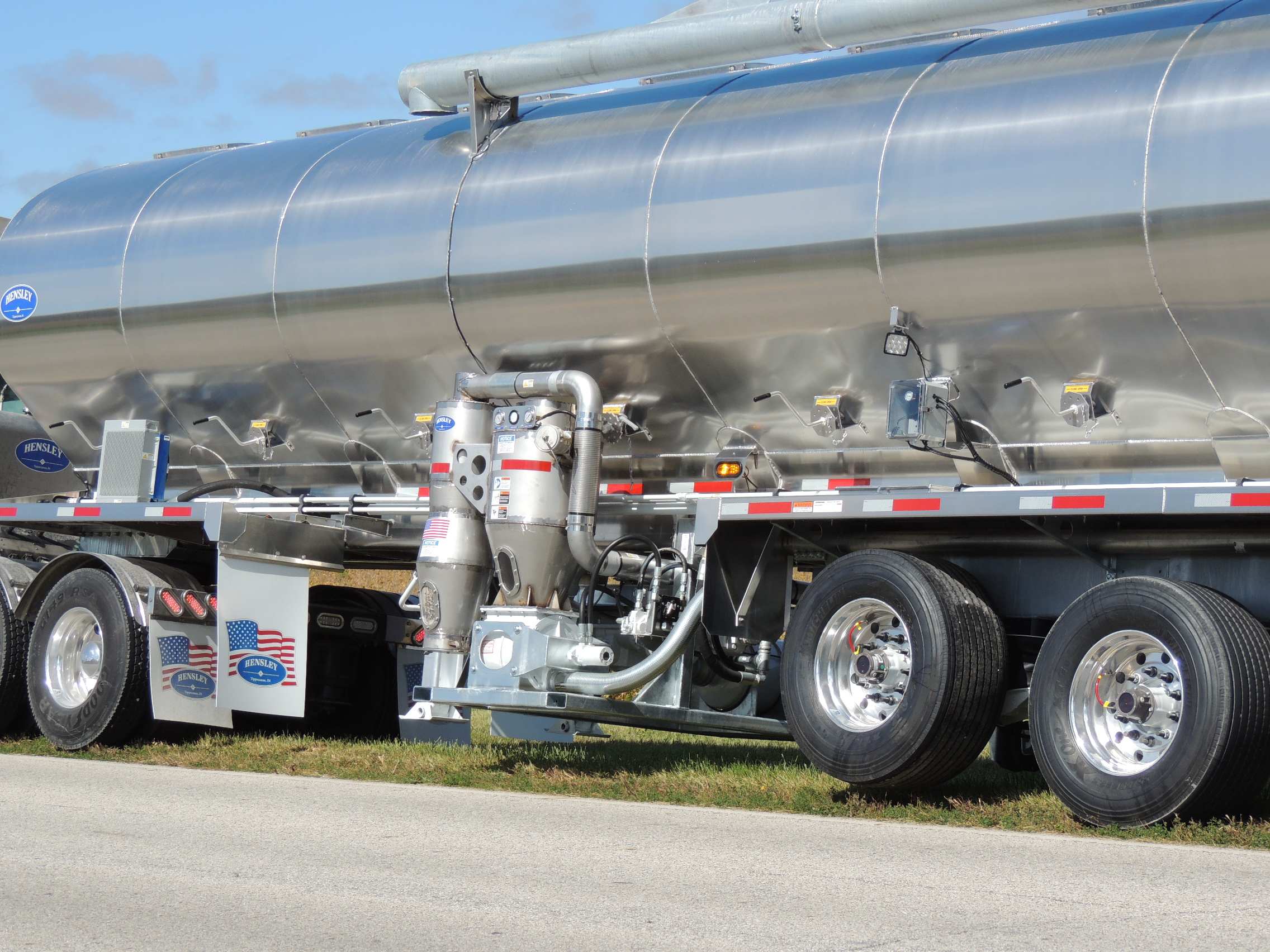

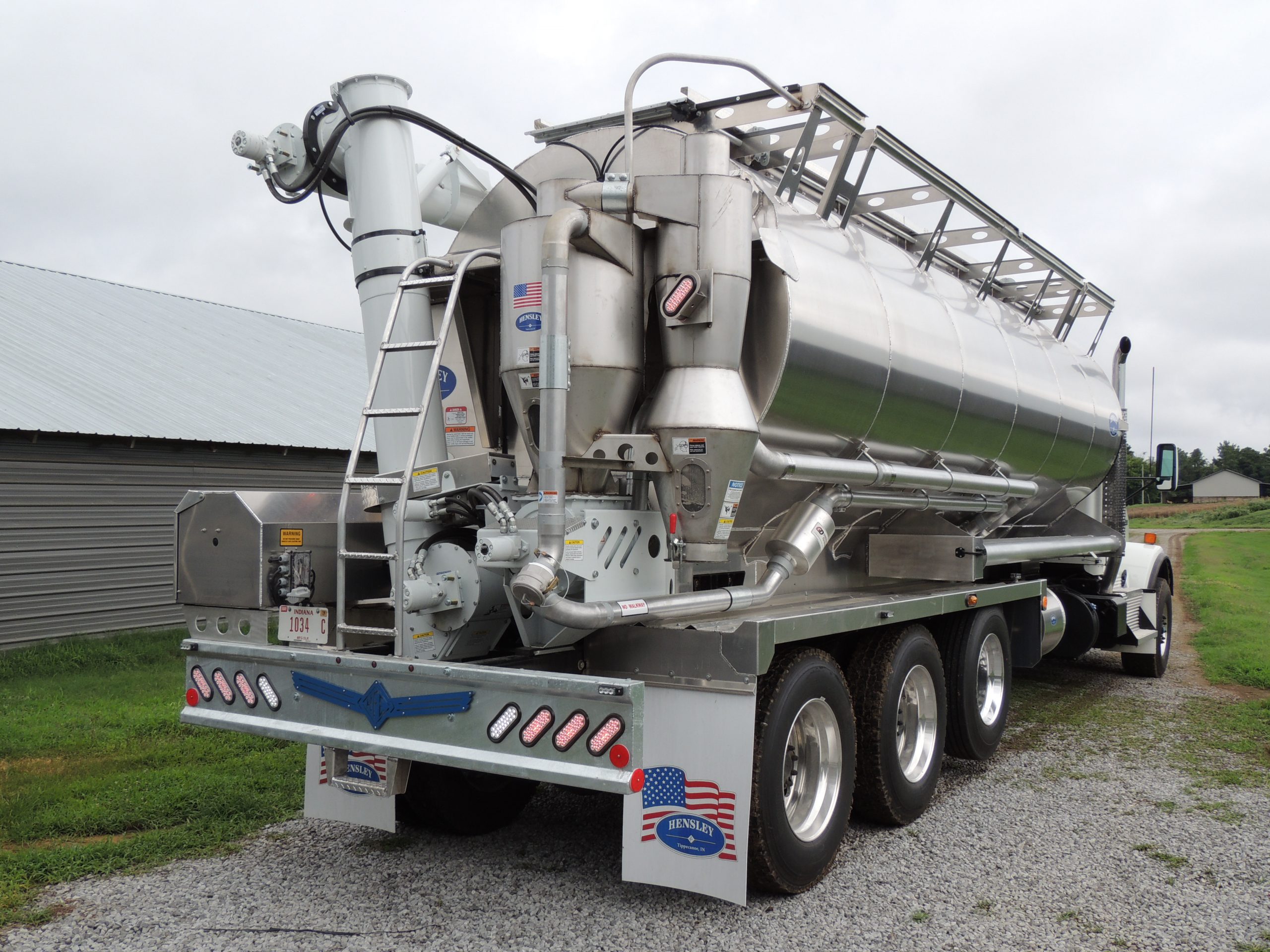

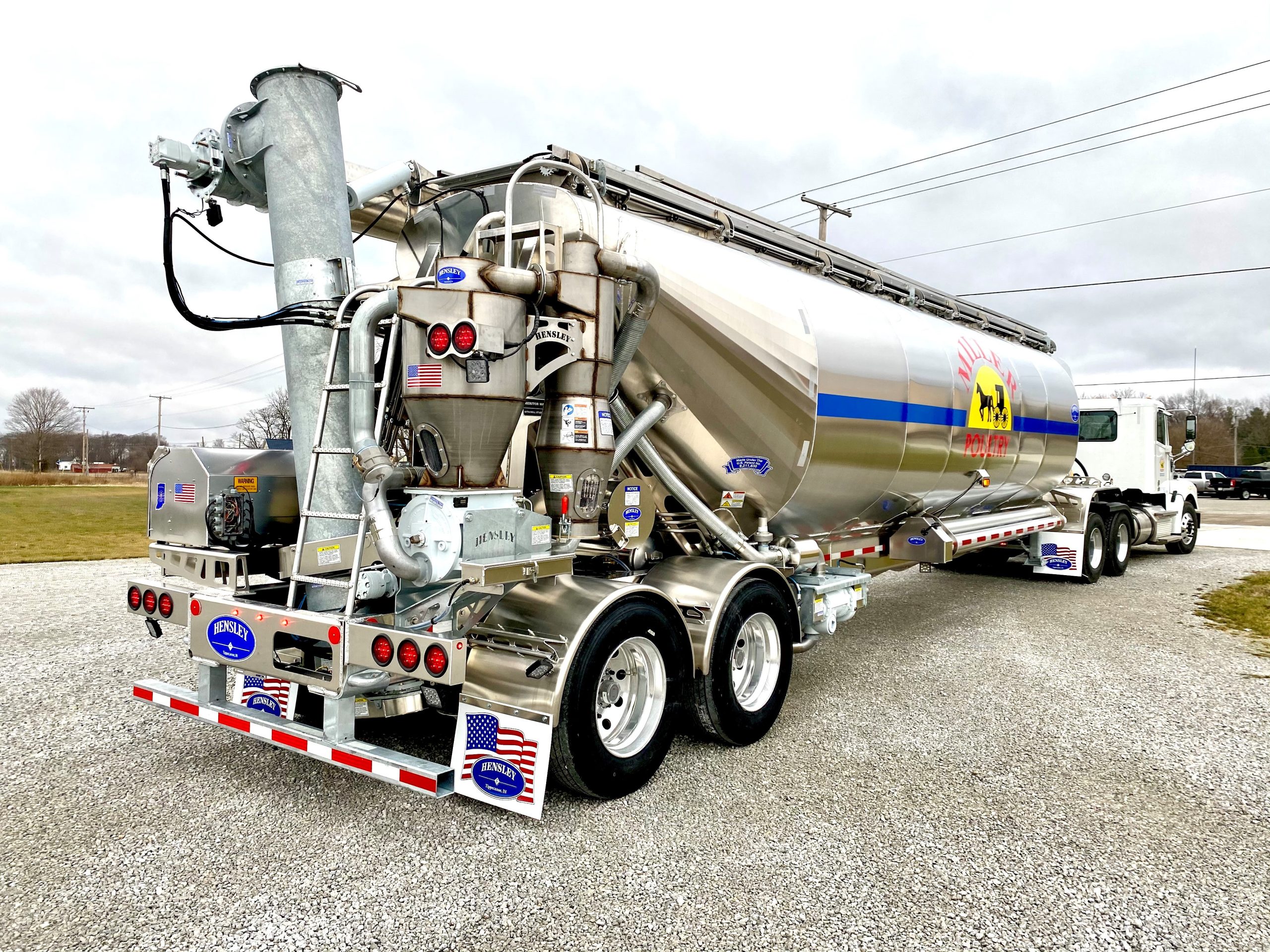

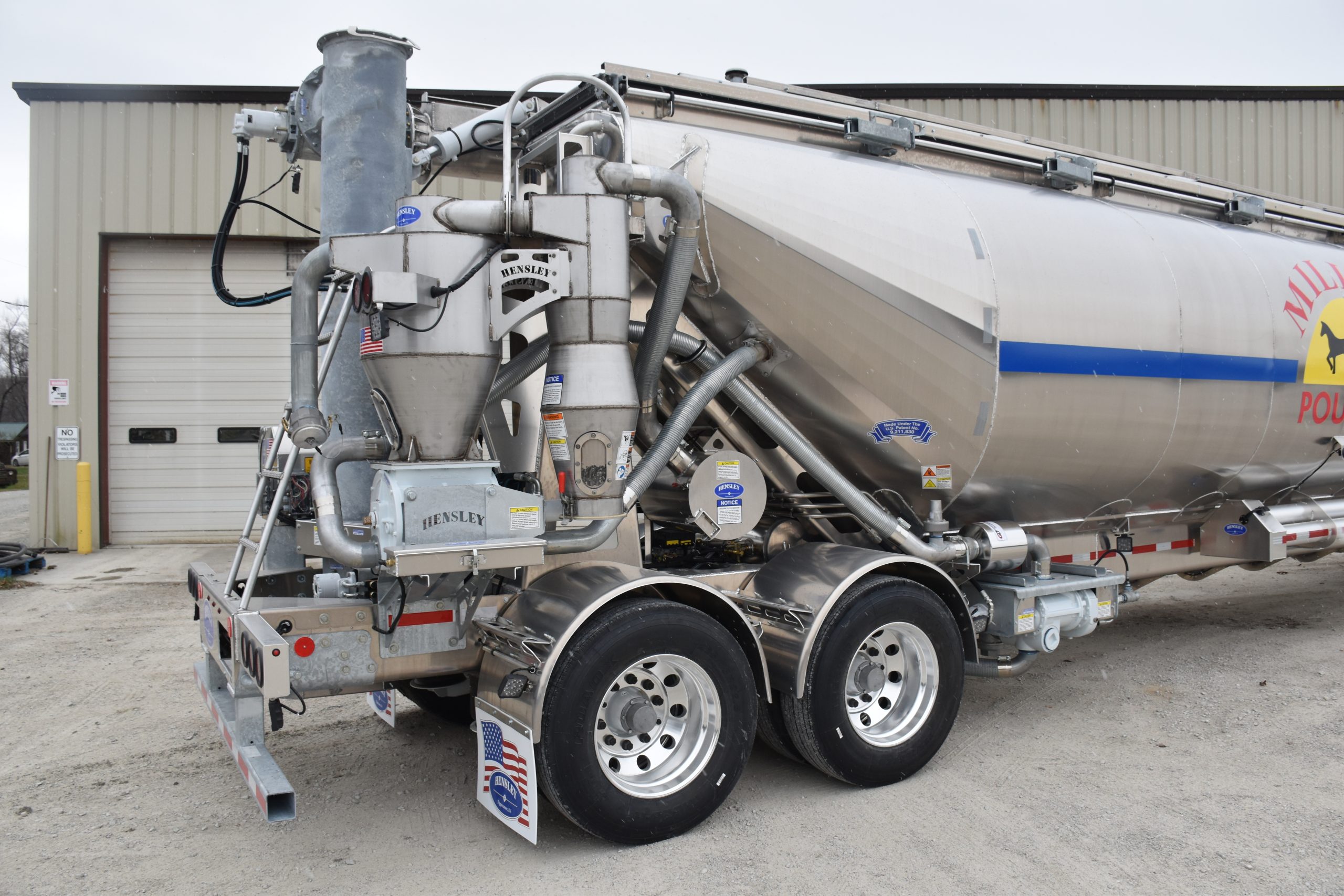

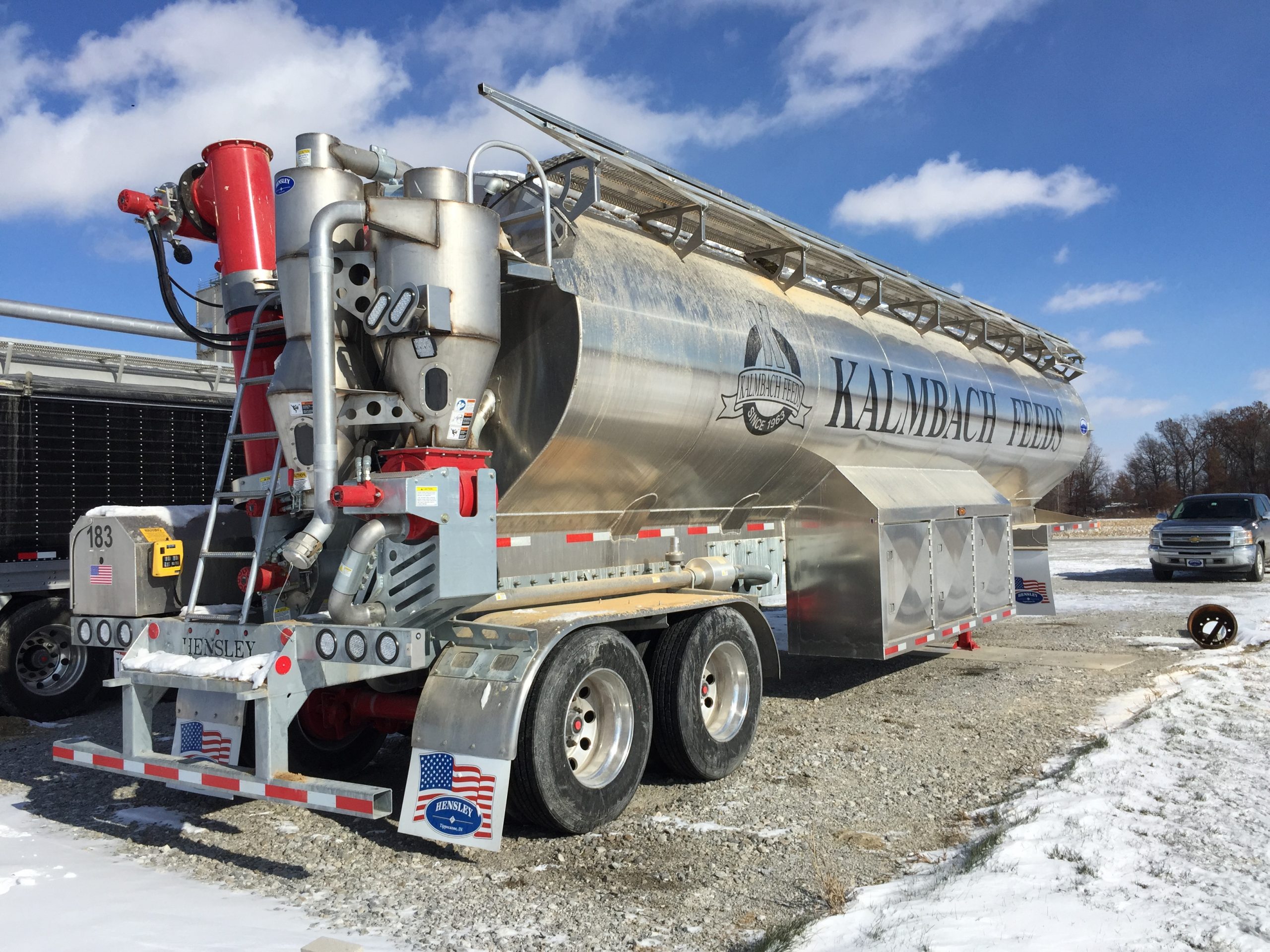

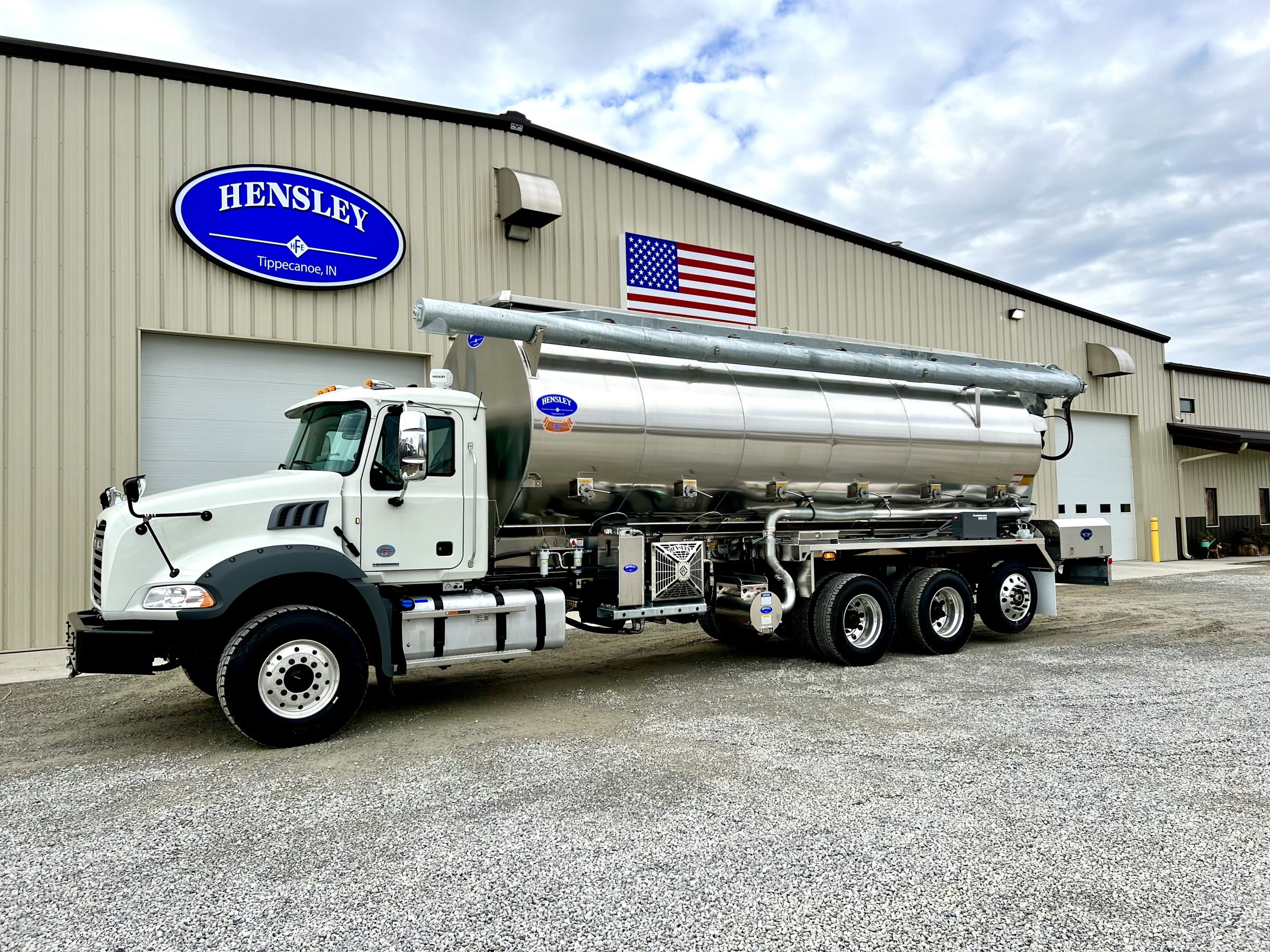

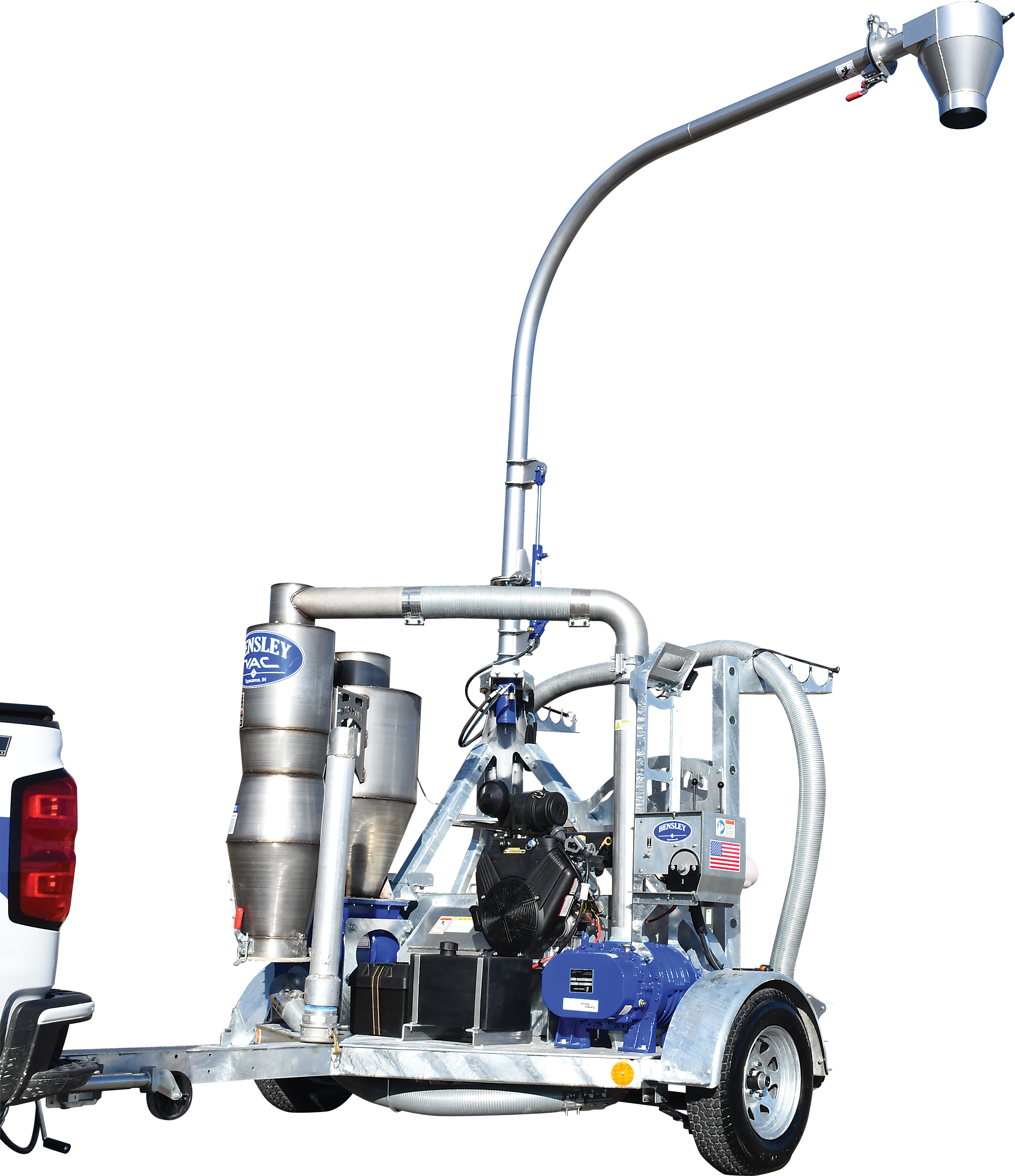

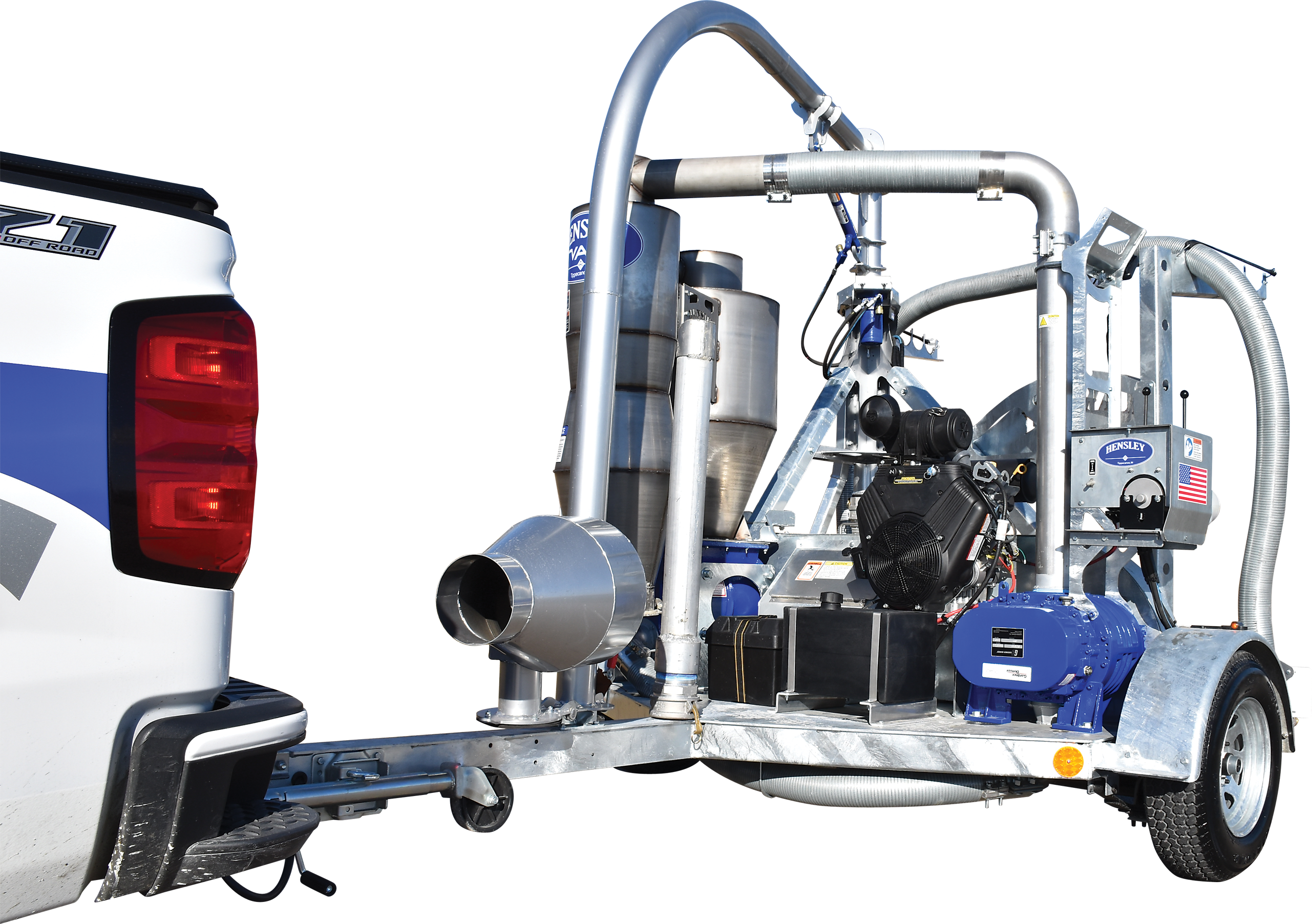

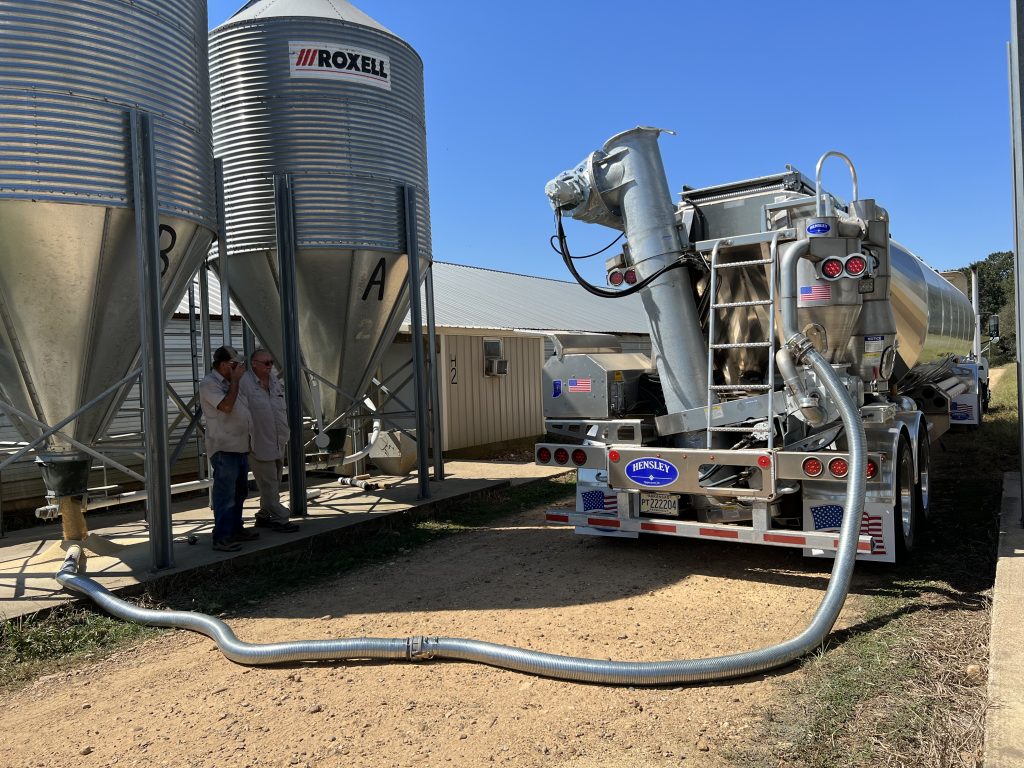

Hensley offers Pneumatic Reclaim Bodies and Trailers and Portable Vacs for those companies that need to reclaim the feed after a house has been emptied. With proven results, our system was designed through our in-house Design and Engineering staff. Our use of Newer Blower Technology allows a higher CFM (Cubic Feed per Minute) at a lower Engine RPM. Hensley by far has the highest quality pneumatic reclaim units on the market! Also available are Tow Behind Reclaim Vac Trailers, Feed Vacs, Grain Vacs and Mill Clean-up Vacs!

Features

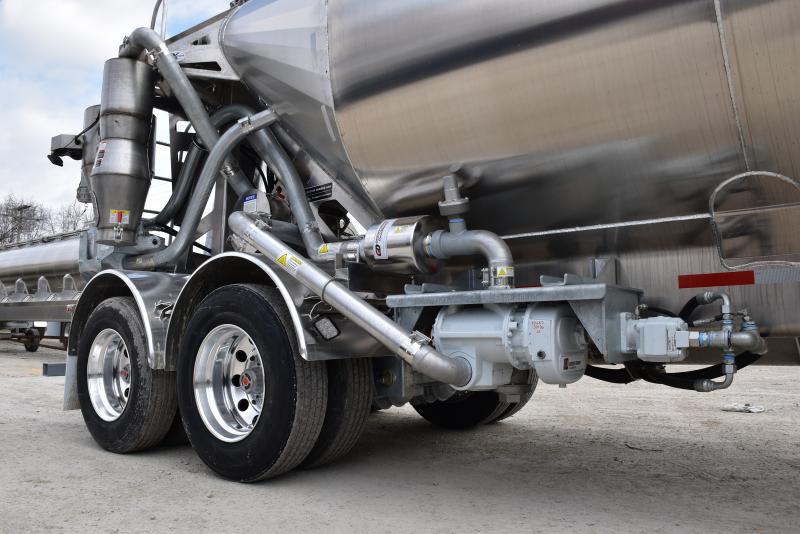

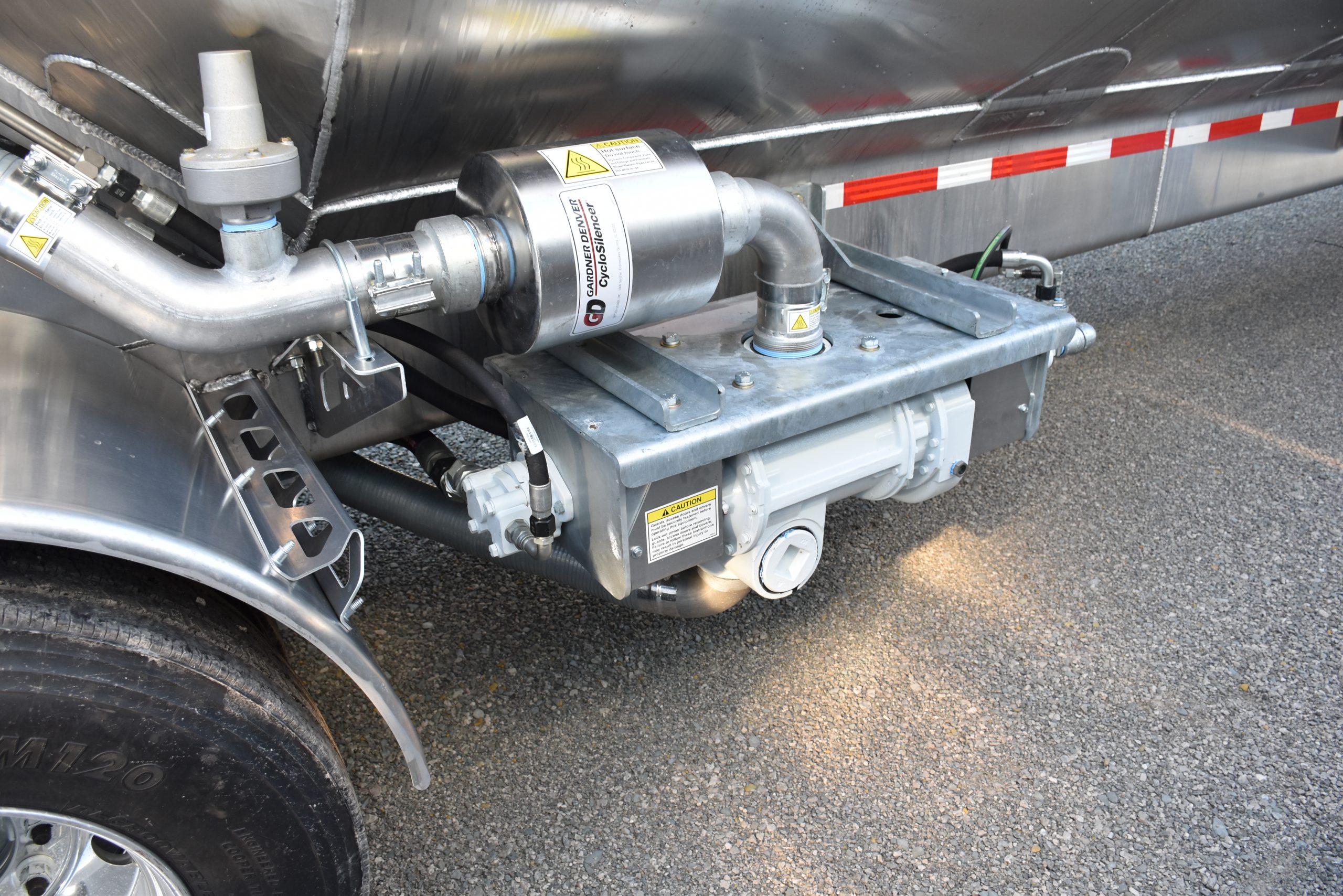

- Gardner/Denver Blower – Mounted On Trailer

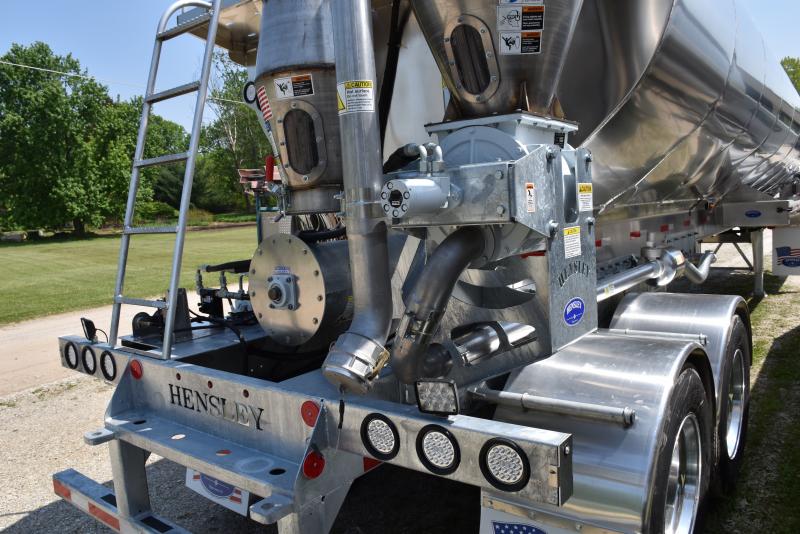

- AWS 101 8-Vane Air Lock

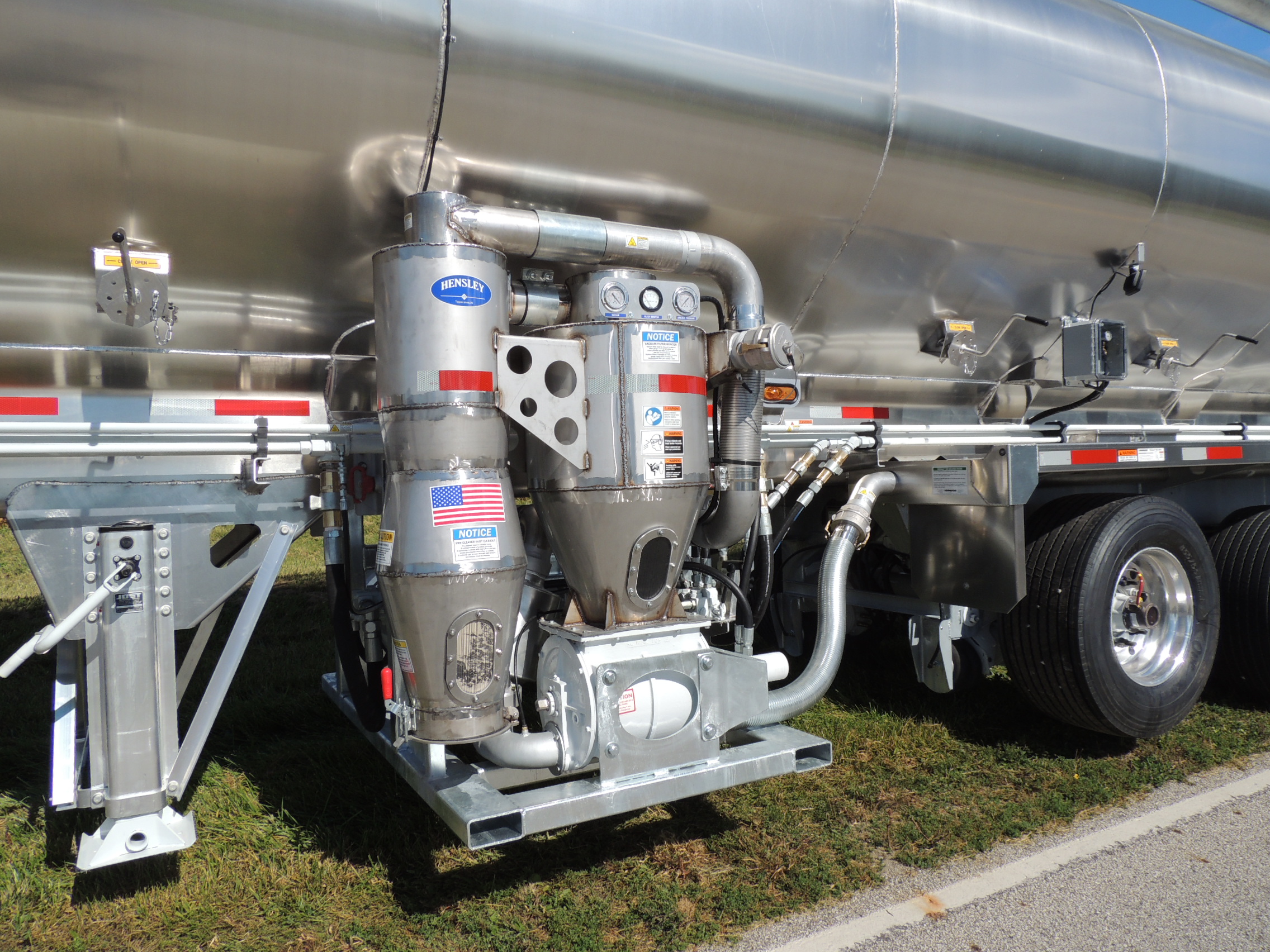

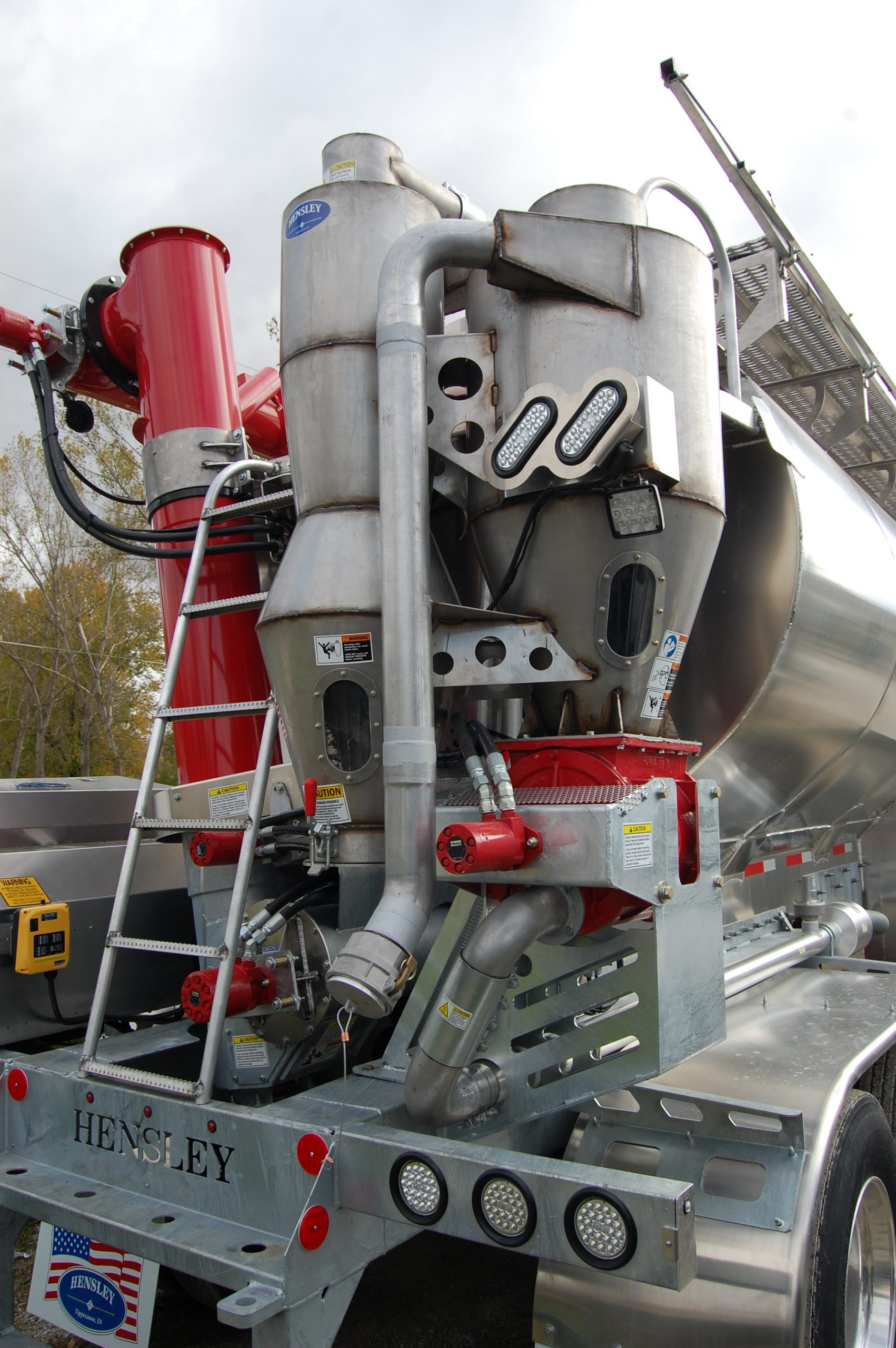

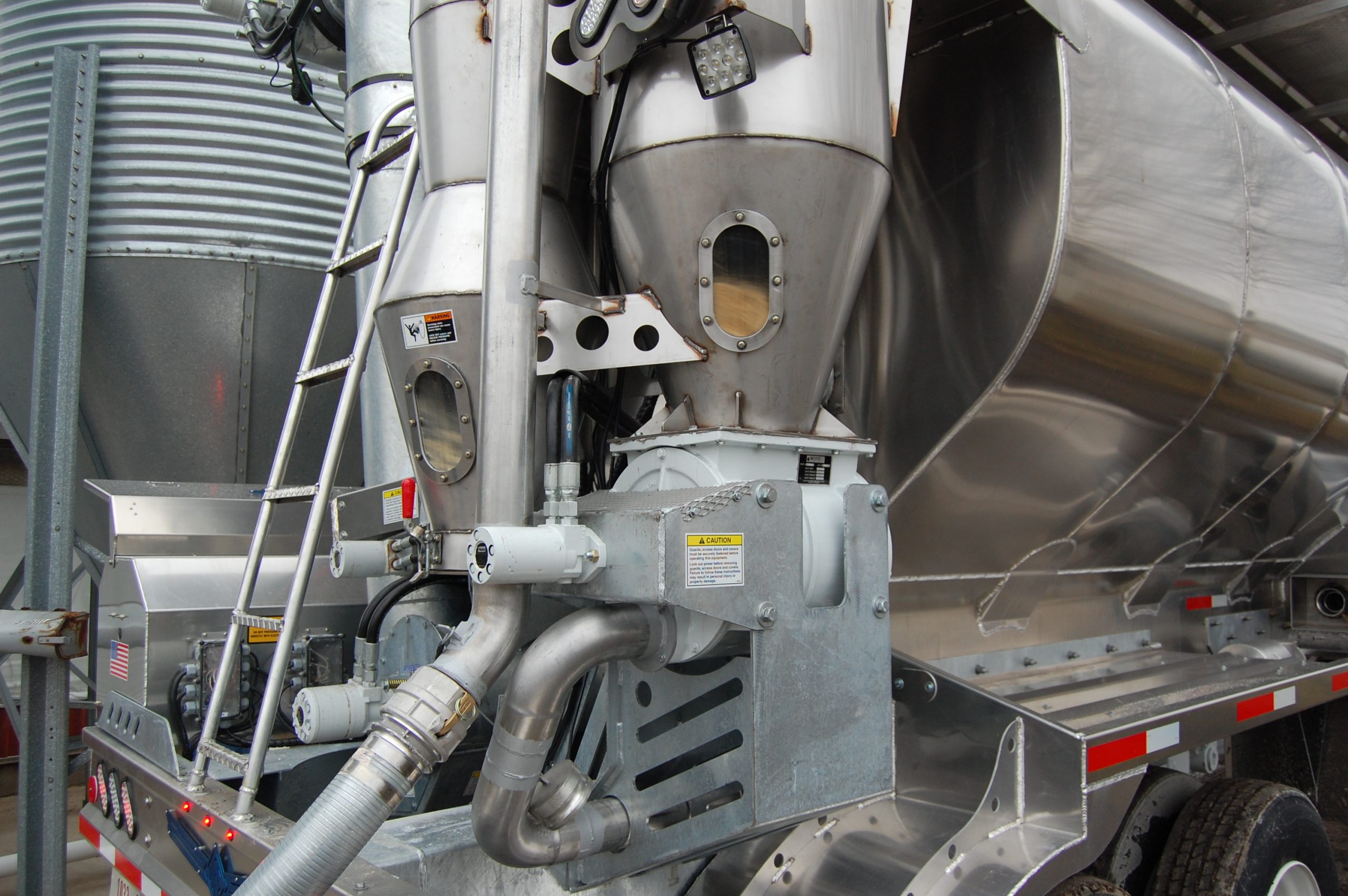

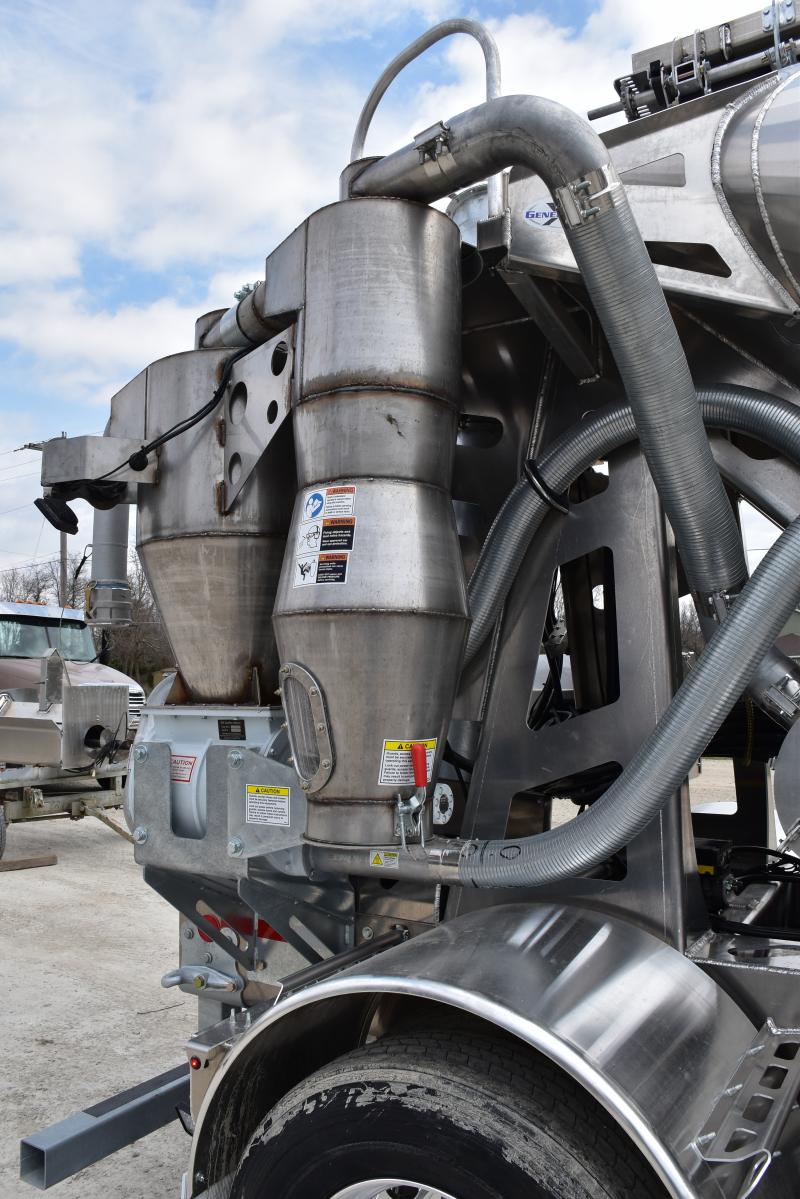

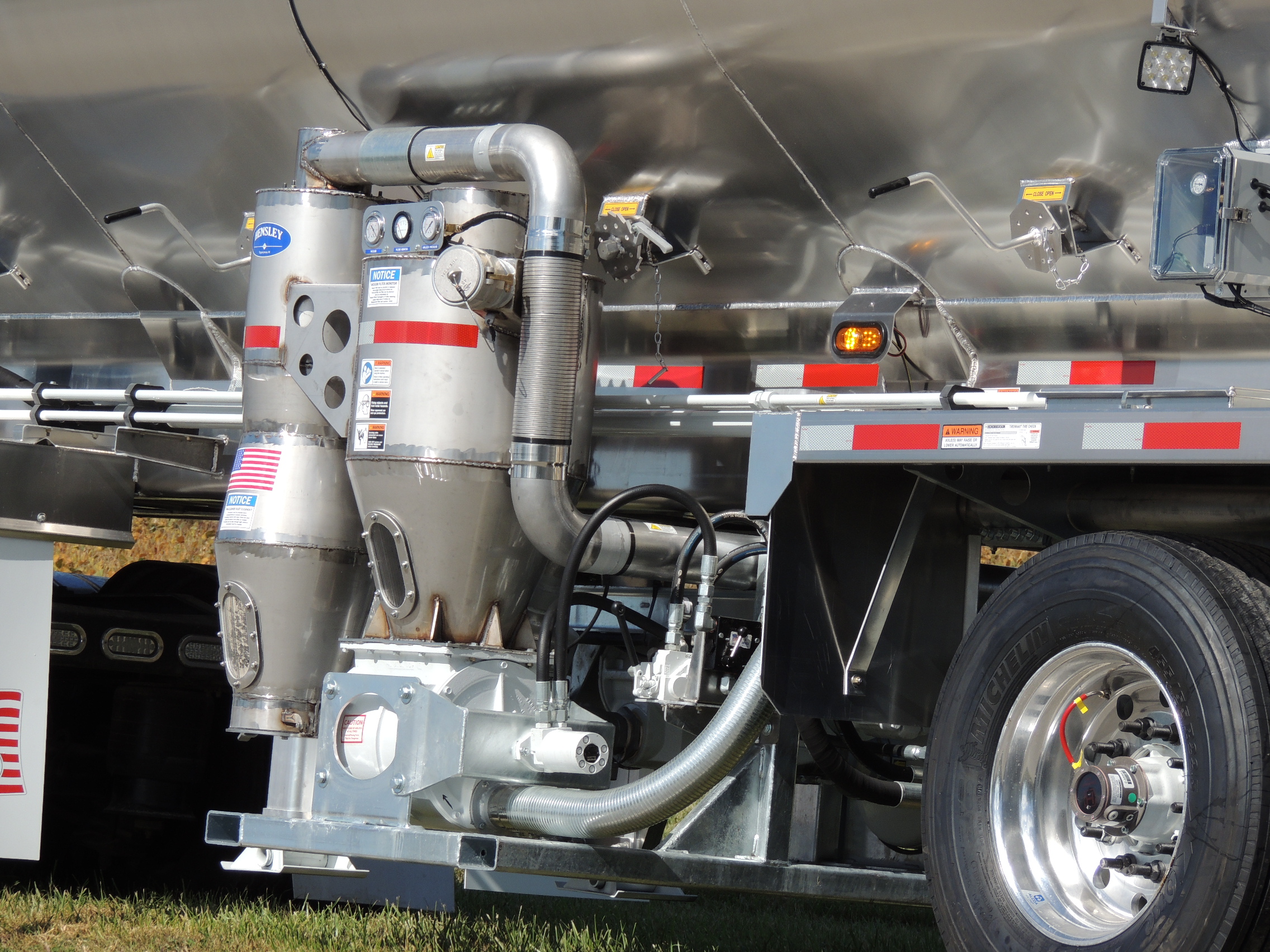

- Stainless Steel Cyclone and Dust Collector

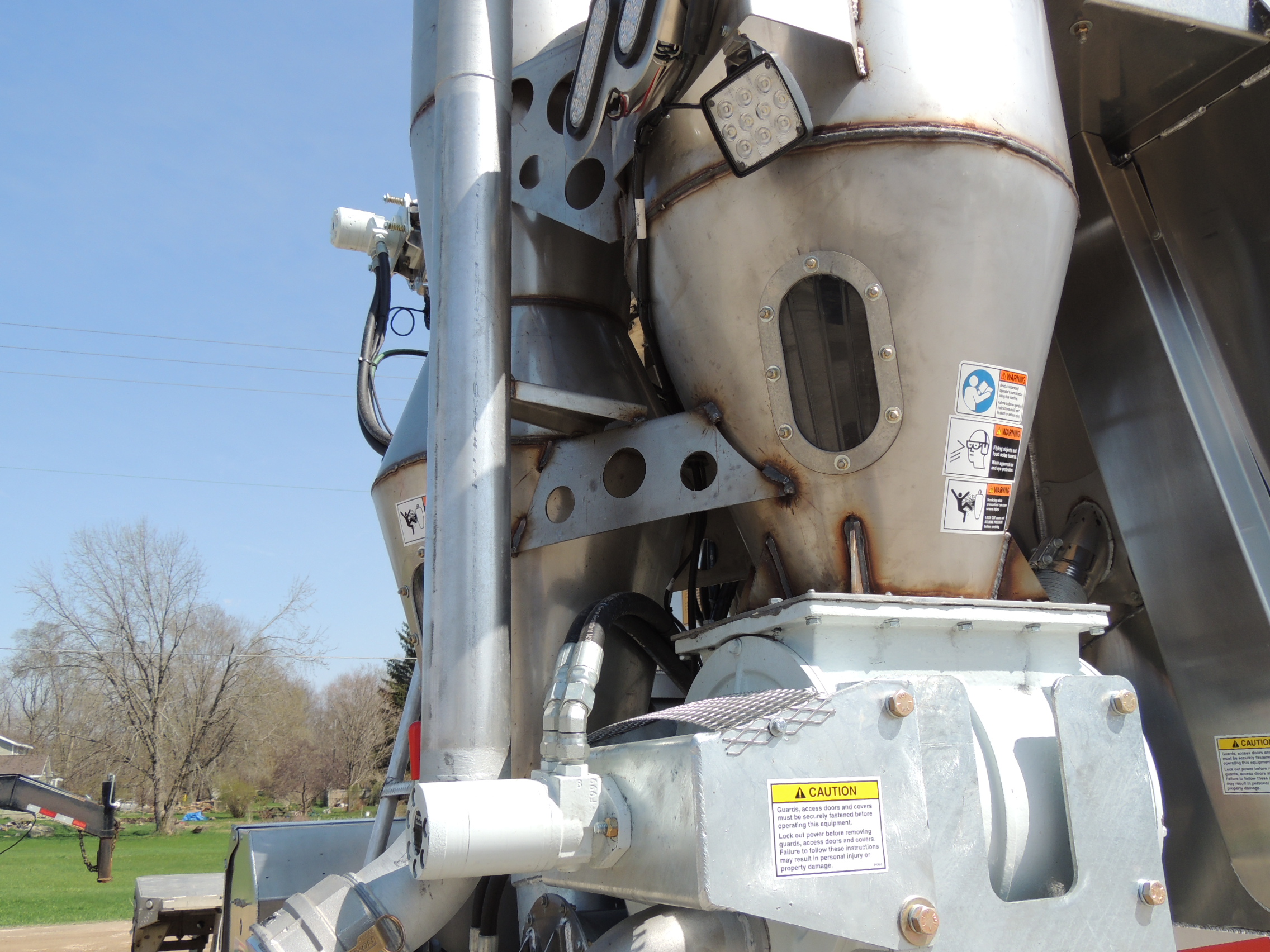

- View Windows on Cyclone and Dust Collector

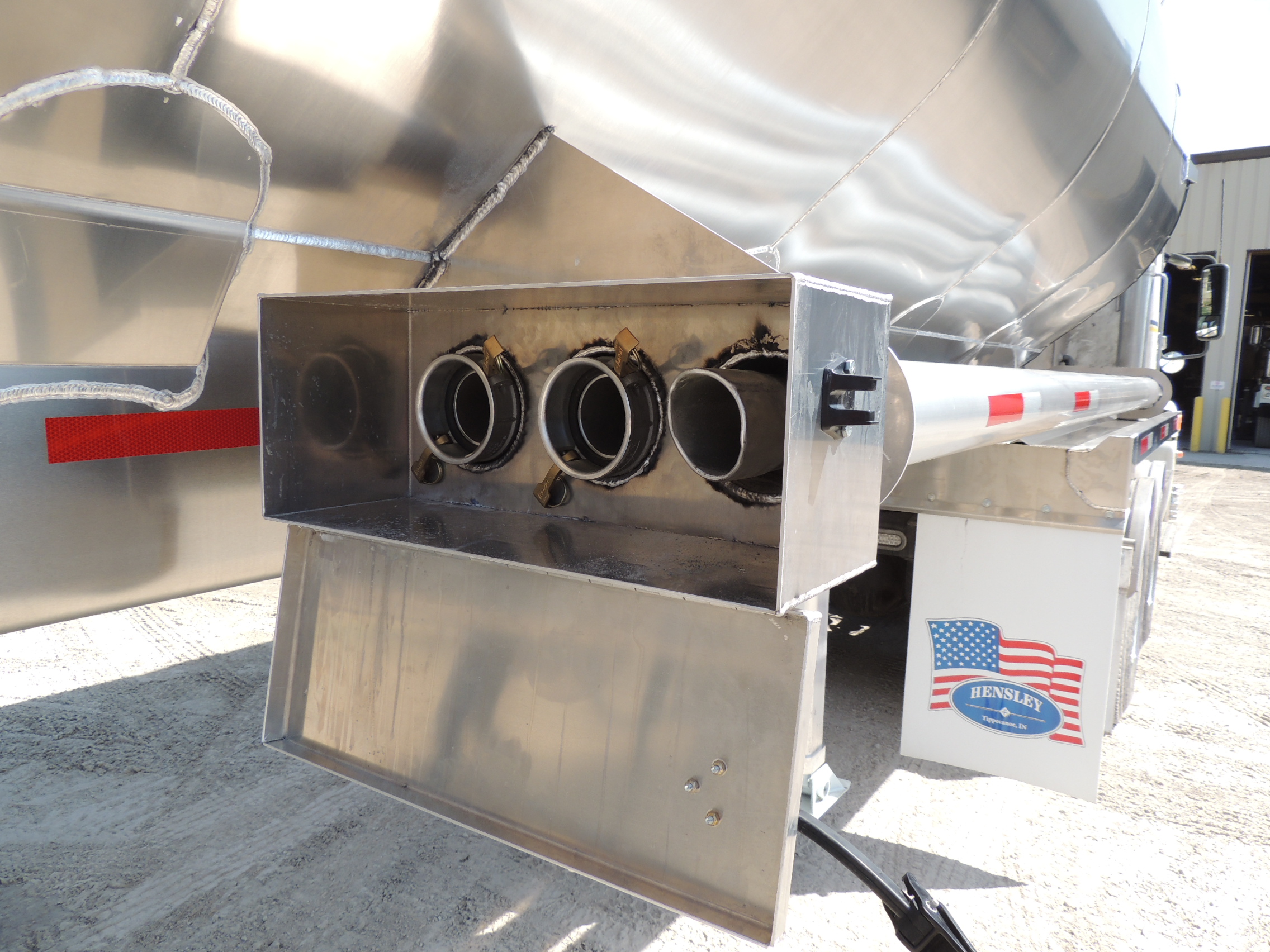

- Air Operated Diverter Valves In Each Compartment (With Front Compartment as “Default”)
- Blower Filter with Filter Monitor Gauge

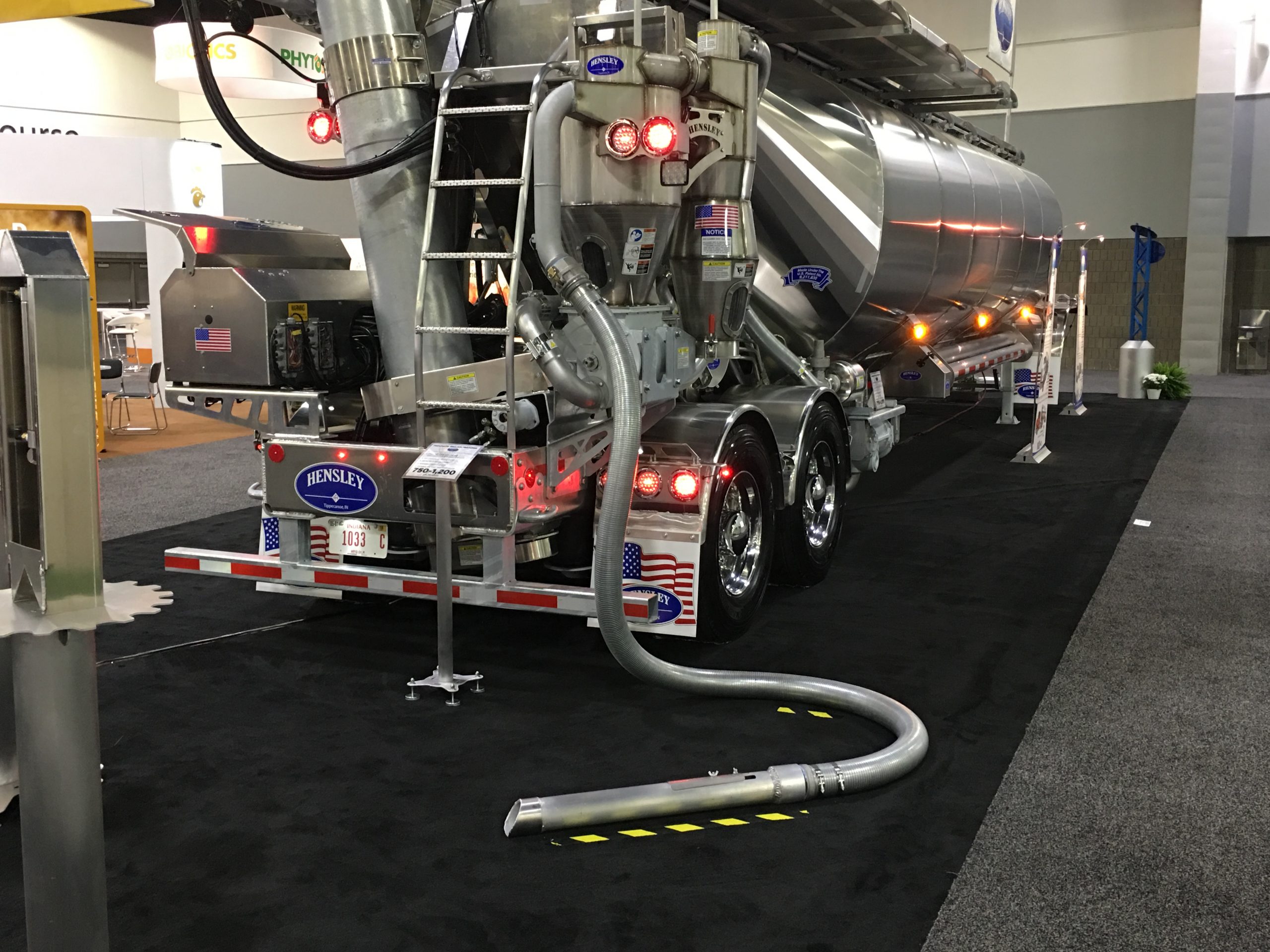

- (3) 20′ Long Galvanized Flex Hoses

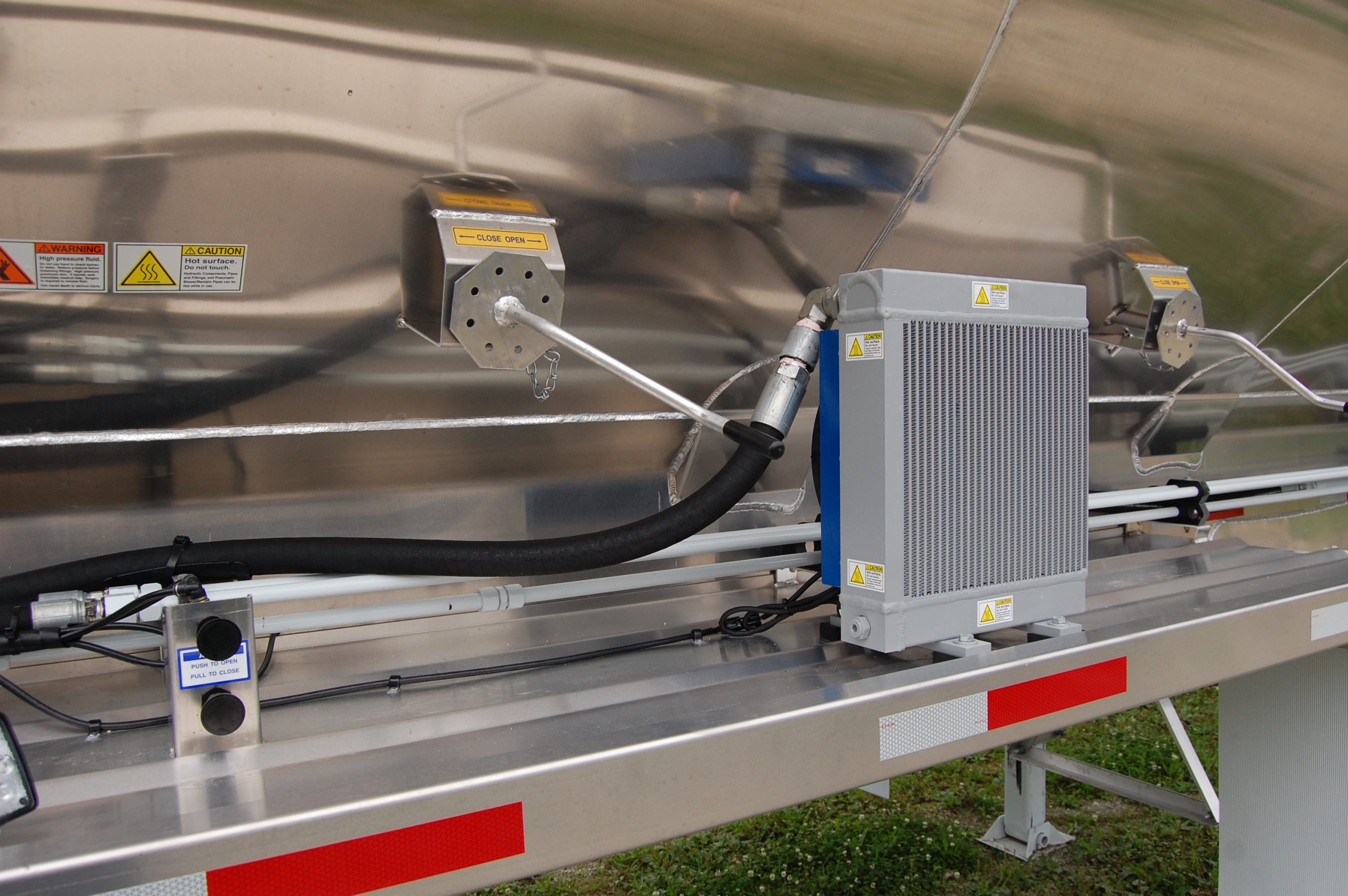

- Heat Exchanger
- Hendrickson INTRAXX 25,000 lb. Suspensions
- 102″ Wide Track Axles
- Truck-Lite/S.S. LED Lighting
- Hot Dipped Galvanized Subframe & Kingpin Plate (Standard)
- Huck Fasteners On Subframe & Kingpin Plate
- Machine Welded Seams
- 3/8” Long Sills – 5086 Tanker/Trailer Aluminum
- 1/2” Thick End Plates – 6061 Aluminum Plate
- 1/8” Thick Side Wall And Dividers – 5052-H32 Aircraft Grade Aluminum
- 4” Extruded Aluminum Load Bearing Channels At Top Of Tank
- Floor U-Trough, Aluminum Construction
- Aluminum Manual Gate Controls On Each Compartment
- All Hydraulic Auger System
- Generation II Auger System – Spring Mounted Motors to reduce Spline Wear
- Parker Direct Drive Motors with 1 1/4″ Spline Shafts
- 25 Ft. Long Discharge Auger With Support Truss
- Steel Parts Primed with Epoxy Primer and PPG Mountain Mist Acrylic Enamel
- Sloped Auger Flighting With 2” I.D. Sch. 80 Pipe – REDUCES PRODUCT DAMAGE
- Split Woodblock Bearings in Discharge and Floor Auger
- Heavy Duty Hydraulic Motor on Floor Auger – Mounted At The Rear
- Variable Speed Control On Floor Auger
- 50-1 Superior Gearbox – Single # 80 Roller Chain
- Turning Device Relief Valves (Gearbox And Chain Protection)

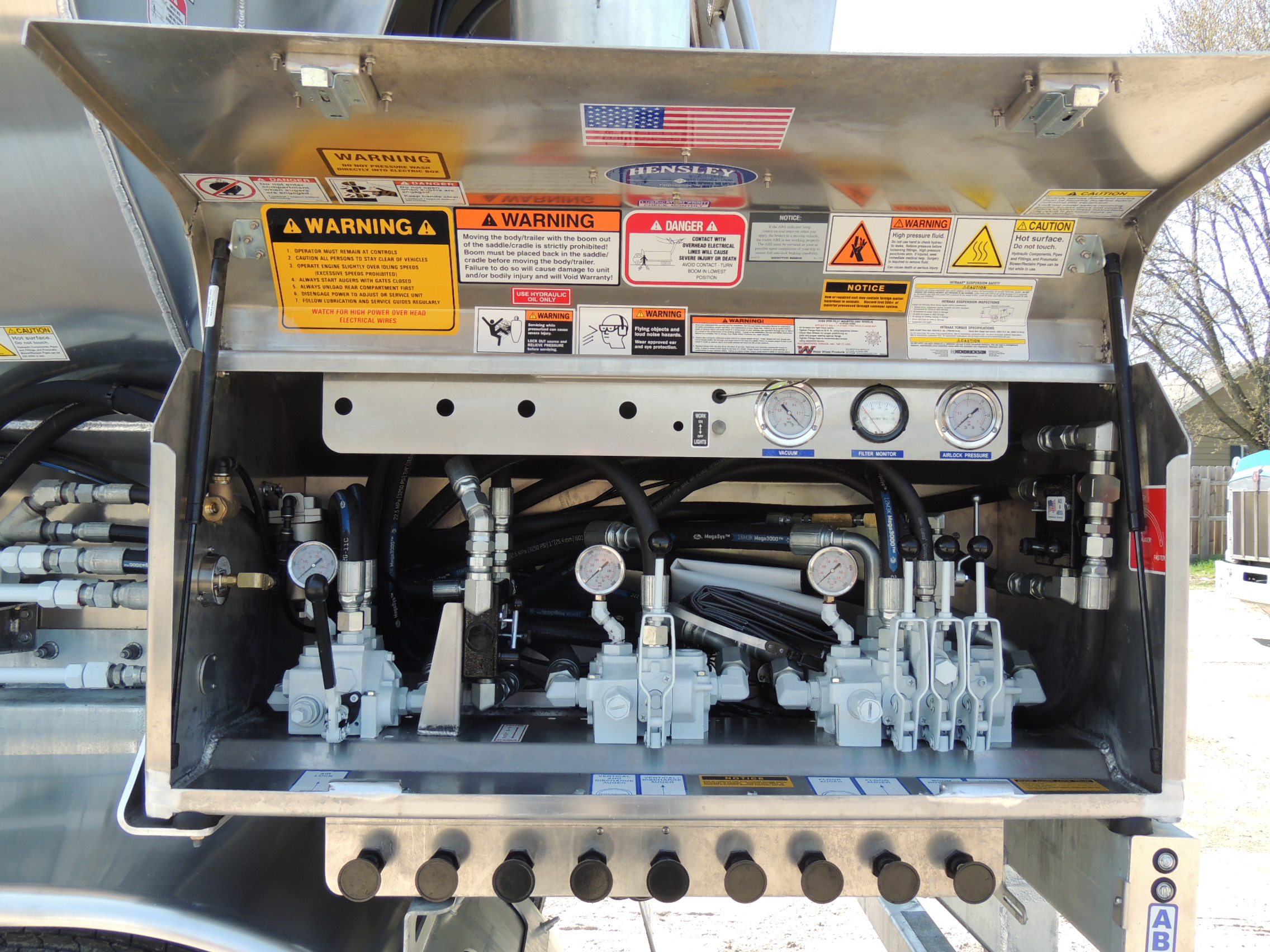

- Valve Bank With Lock Valve On Boom Cylinder
- Hydraulic Controls located at Rear Driver’s Side
- Rear Ladder, Center Mount
- Rear Tray Safety Bar At Rear of Body
- Truck-Lite Completely Sealed Wiring System – All wiring run through Rubber Grommets – No Cuts Or Splices!
- 50th Anniversary “v” Shaped Aluminum Bumper With (2) Sets of Four Lights – RED-RED-RED-AMBER
- Impact Absorbing Bumper At Rear
- High Mount Stop/Turn Lights – (1) Red, (1) Amber
- Hensley Logo/American Flag Anti-Sail Mud flaps
- Aluminum Mud Guards Ahead of Tandems
- Conspicuity Tape
- 10′ Front & Rear Aluminum Fenders – Both Sides






















Options
